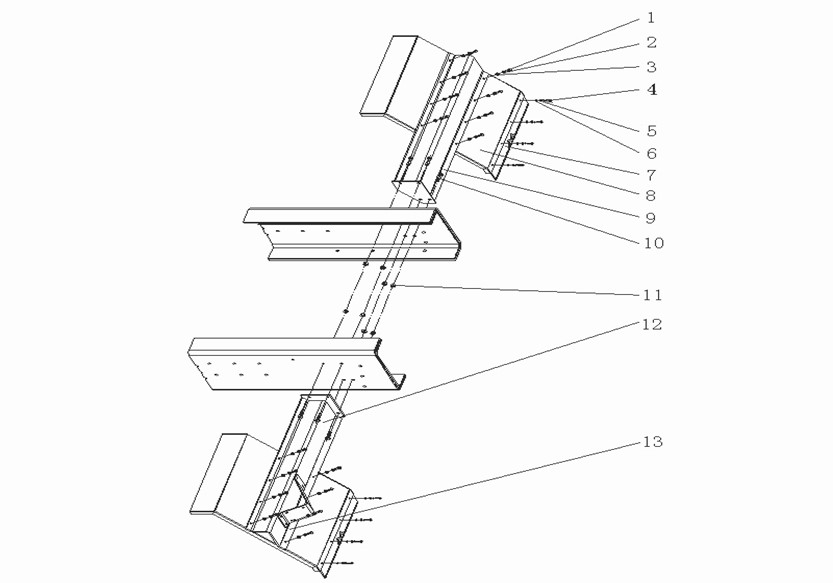

1930527 Front fender
Unit1930527Detail
|
Unit1930527Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
13 |
1 |
Q150B0825 |
Bolt |
016 |
1930527 |
||
|
14 |
2 |
Q40008 |
Washer |
016 |
1930527 |
||
|
15 |
3 |
Q33208 |
Nut |
016 |
1930527 |
||
|
18 |
4 |
Q150B0620 |
Bolt |
008 |
1930527 |
||
|
19 |
5 |
Q40006 |
Washer |
008 |
1930527 |
||
|
20 |
6 |
Q33206 |
Nut |
008 |
1930527 |
||
|
16 |
7 |
11600950003 |
Dust soft board |
002 |
1930527 |
||
|
11 |
8 |
WG9770930038 |
fender |
002 |
1930527 |
||
|
7 |
9 |
WG9770930035 |
Front right plate support assembly |
001 |
1930527 |
||
|
4 |
10 |
Q150B1245 |
Bolt |
003 |
1930527 |
||
|
5 |
11 |
Q33212 |
Nut |
004 |
1930527 |
||
|
2 |
12 |
WG9770930030 |
Front left side subplate bracket assembly |
001 |
1930527 |
||
|
17 |
13 |
17017950006 |
layering |
002 |
1930527 |
||
|
9 |
14 |
Q150B1245 |
Bolt |
003 |
1930527 |
||
|
10 |
15 |
Q33212 |
Nut |
004 |
1930527 |
||
|
21 |
16 |
Q150B1250 |
Bolt |
001 |
1930527 |
||
|
22 |
17 |
Q150B1250 |
Bolt |
001 |
1930527 |
||
