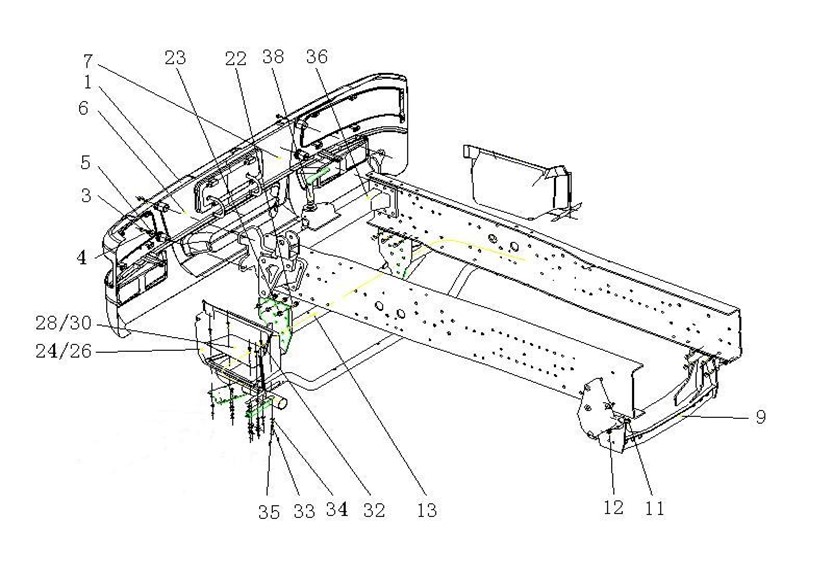

1930514 Front traction device and pedal bracket assembly
Unit1930514Detail
Unit1930514Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
WG1608241160 |
08 overall bumper assembly (steel) |
001 |
1930514 |
||
2 |
2 |
WG1608241160/1 |
08 overall bumper assembly (steel) |
001 |
1930514 |
||
3 |
3 |
Q150B1230 |
Bolt |
004 |
1930514 |
||
4 |
4 |
Q40312 |
Spring washer |
004 |
1930514 |
||
5 |
5 |
Q40212 |
Washer |
004 |
1930514 |
||
6 |
6 |
AZ1608240098 |
The left wall cover |
001 |
1930514 |
||
7 |
7 |
AZ1608240099 |
Blocking cover right (with a symmetrical from left) |
001 |
1930514 |
||
8 |
8 |
AZ1608240097 |
O rubber ring |
002 |
1930514 |
||
9 |
9 |
WG9124510020 |
Bracket assembly |
001 |
1930514 |
||
10 |
10 |
WG9124510020/1 |
Bracket assembly (jinan fuwei) |
001 |
1930514 |
||
11 |
11 |
Q150B1440 |
Bolt |
008 |
1930514 |
||
12 |
12 |
Q33214 |
Nut |
008 |
1930514 |
||
13 |
13 |
AZ9125930106 |
Pedal bracket assembly |
001 |
1930514 |
||
14 |
14 |
AZ9125930011 |
Cab bracket pedal bracket |
001 |
1930514 |
||
15 |
15 |
AZ9125930101 |
The left bracket |
001 |
1930514 |
||
16 |
16 |
AZ9125930102 |
The right bracket |
001 |
1930514 |
||
17 |
17 |
AZ9125930107 |
Tube beam |
001 |
1930514 |
||
18 |
18 |
AZ9125930104 |
Plate |
002 |
1930514 |
||
19 |
19 |
AZ9125930013 |
Plate |
002 |
1930514 |
||
20 |
20 |
AZ9125930031 |
Pedal bracket support plate Ⅰ |
002 |
1930514 |
||
21 |
21 |
AZ9125930032 |
Pedal bracket support plate Ⅱ |
002 |
1930514 |
||
22 |
22 |
Q150B1435 |
Bolt |
006 |
1930514 |
||
23 |
23 |
Q340B14 |
Nut |
006 |
1930514 |
||
24 |
24 |
WG1632241021 |
Left vehicle pedal (symmetric with right part) |
001 |
1930514 |
||
25 |
25 |
WG1632241021/1 |
Left vehicle pedal (symmetric with right piece) |
001 |
1930514 |
||
26 |
26 |
WG1632241022 |
Right pedal |
001 |
1930514 |
||
27 |
27 |
WG1632241022/1 |
Right pedal |
001 |
1930514 |
||
28 |
28 |
WG1632230007 |
Left guard plate assembly |
001 |
1930514 |
||
29 |
29 |
WG1632230007/1 |
Left guard plate assembly |
001 |
1930514 |
||
30 |
30 |
WG1632230008 |
Right guard plate assembly (symmetrical to left) |
001 |
1930514 |
||
31 |
31 |
WG1632230008/1 |
Right guard plate assembly (symmetric with left piece) |
001 |
1930514 |
||
32 |
32 |
Q2540830 |
Screw |
012 |
1930514 |
||
33 |
33 |
Q340B06 |
Nut |
012 |
1930514 |
||
34 |
34 |
Q40206 |
Washer |
012 |
1930514 |
||
35 |
35 |
Q40306 |
Spring washer |
012 |
1930514 |
||
36 |
36 |
WG9125931025 |
Front beam assembly |
001 |
1930514 |
||
37 |
37 |
WG9125931025/1 |
Front beam assembly (jinan fuwei) |
001 |
1930514 |
||
38 |
38 |
199012930020 |
The latch assembly |
001 |
1930514 |
||
39 |
39 |
199012930021 |
bolt |
001 |
1930514 |
||
40 |
40 |
199012930022 |
Pin handle |
001 |
1930514 |
