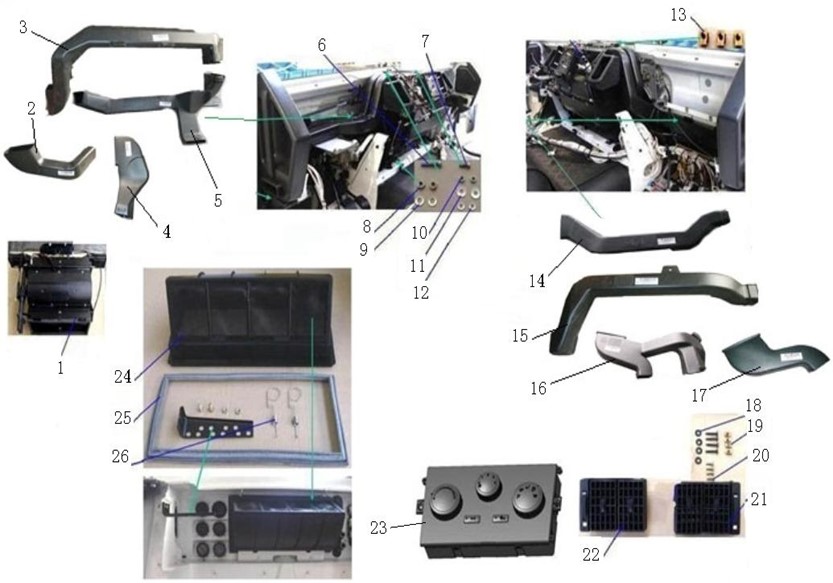

1840047 Heater
Unit1840047Detail
Unit1840047Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
2 |
1 |
AZ1608840045 |
Warm air blower assembly (electronic) |
001 |
1840047 |
||
31 |
2 |
AZ1632843014 |
Right rear truck left ventilation tube Ⅳ / 85619500112 0111 |
001 |
1840047 |
||
28 |
3 |
AZ1632843011 |
Right rear truck left ventilation tube Ⅰ / 85619500104 0103 |
001 |
1840047 |
||
30 |
4 |
AZ1632843013 |
The right rear truck left ventilation tube Ⅲ / 85619500108 |
001 |
1840047 |
||
29 |
5 |
AZ1632843012 |
The right rear truck left ventilation tube Ⅱ / 85619500118 |
001 |
1840047 |
||
21 |
6 |
Q150B0635 |
Bolt |
001 |
1840047 |
||
22 |
7 |
Q150B0616 |
Bolt |
001 |
1840047 |
||
26 |
8 |
Q340B08 |
Nut |
002 |
1840047 |
||
27 |
9 |
Q40208 |
Washer |
002 |
1840047 |
||
23 |
10 |
Q340B06 |
Nut |
002 |
1840047 |
||
24 |
11 |
Q40206 |
Washer |
002 |
1840047 |
||
25 |
12 |
Q40106 |
Washer |
002 |
1840047 |
||
36 |
13 |
AZ1608930015 |
Spring nut / 85.90685-0004 |
003 |
1840047 |
||
32 |
14 |
AZ1632843015 |
Right rear truck right ventilation tube Ⅰ / 85619500106 0105 |
001 |
1840047 |
||
33 |
15 |
AZ1632843016 |
The right rear truck right ventilation tube Ⅱ / 85619500130 |
001 |
1840047 |
||
34 |
16 |
AZ1632843017 |
The right rear truck right ventilation tube Ⅲ / 85619500110 |
001 |
1840047 |
||
35 |
17 |
AZ1608840014 |
Left air duct IV/85619500113 |
001 |
1840047 |
||
42 |
18 |
Q40205 |
Washer |
004 |
1840047 |
||
40 |
19 |
Q39748202 |
Reed nut |
004 |
1840047 |
||
41 |
20 |
Q2714813 |
Screw |
004 |
1840047 |
||
46 |
21 |
AZ1608840023 |
The right outlet assembly (with a symmetrical from left) / 81619500246 |
001 |
1840047 |
||
45 |
22 |
AZ1608840022 |
The left outlet assembly / 81619500247 |
001 |
1840047 |
||
47 |
23 |
WG1608828051/1 |
Air conditioning control panel |
001 |
1840047 |
||
63 |
24 |
AZ1608840031 |
Air inlet network assembly /85619500020 |
001 |
1840047 |
||
64 |
25 |
WG1608840033 |
Sealing ring / 85619500040 |
001 |
1840047 |
||
68 |
26 |
AZ1608840032 |
Spring clip / 85619500035 |
002 |
1840047 |
||
20 |
27 |
AZ9125776002 |
Wiring harness |
001 |
1840047 |
||
37 |
28 |
Q2714816 |
Screw |
003 |
1840047 |
||
38 |
29 |
Q40205 |
Washer |
003 |
1840047 |
||
39 |
30 |
AZ1608840020 |
Spray outlet / 85619506001 |
002 |
1840047 |
||
43 |
31 |
AZ1608160038 |
Sealing ring / 85964200011 |
002 |
1840047 |
||
44 |
32 |
AZ1608840021 |
A hole sheath / 85619000002 |
001 |
1840047 |
||
48 |
33 |
Q2744216 |
Screw |
002 |
1840047 |
||
49 |
34 |
WG1642930009 |
Nut |
002 |
1840047 |
||
53 |
35 |
AZ1608840028 |
Cover with blind hole plate |
002 |
1840047 |
||
56 |
36 |
WG1600840031 |
Hose |
002 |
1840047 |
||
61 |
37 |
190003989340 |
Hose clamp |
004 |
1840047 |
||
69 |
38 |
WG1608820040 |
Air conditioner air inlet filter for prince’s cab |
001 |
1840047 |
