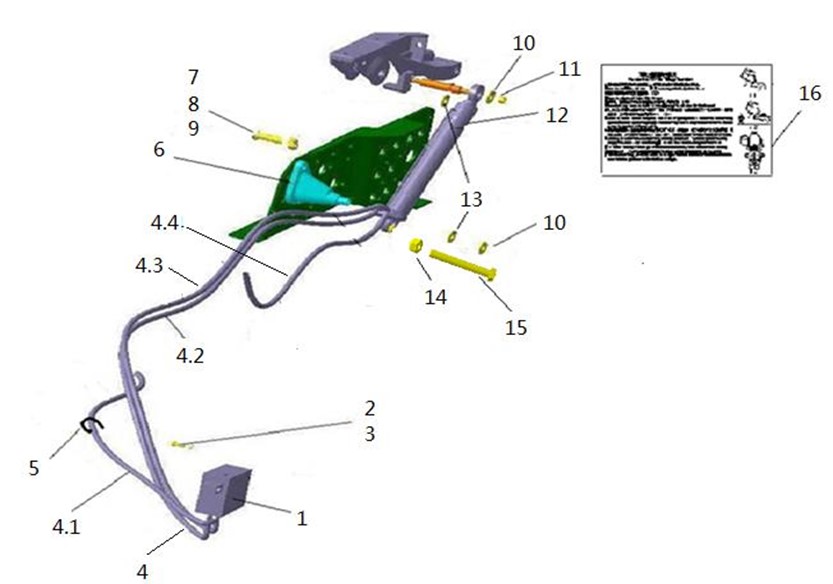

1820537 Tilting assembly
Unit1820537Detail
|
Unit1820537Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
8 |
1 |
WG9525820010 |
Lift pump |
001 |
1820537 |
||
|
10 |
2 |
Q150B1025 |
Bolt |
002 |
1820537 |
||
|
11 |
3 |
Q40310 |
Spring washer |
002 |
1820537 |
||
|
12 |
4 |
WG9525820074 |
Pressure line assembly |
001 |
1820537 |
||
|
13 |
4.1 |
WG9525820074/1 |
Pressure line assembly |
001 |
1820537 |
||
|
14 |
4.2 |
WG9525820075/1 |
Left pressure line |
001 |
1820537 |
||
|
15 |
4.3 |
WG9525820051/1 |
Right pressure line |
002 |
1820537 |
||
|
16 |
4.4 |
WG9525820026/1 |
Right pressure line |
001 |
1820537 |
||
|
17 |
5 |
190003171356 |
Cable binder |
012 |
1820537 |
||
|
1 |
6 |
WG9525820001 |
Cylinder bracket |
001 |
1820537 |
||
|
4 |
7 |
ZQ151B1655TF6 |
Hexagon head bolts |
001 |
1820537 |
||
|
5 |
8 |
ZQ151B1670TF6 |
Hexagon head bolts |
001 |
1820537 |
||
|
6 |
9 |
ZQ361B16T13F6 |
Hexagon nuts ,style 2 |
002 |
1820537 |
||
|
23 |
10 |
Q40214 |
Washer |
002 |
1820537 |
||
|
25 |
11 |
190003888458 |
Nut |
001 |
1820537 |
||
|
18 |
12 |
WG9525820020 |
Hydraulic cylinder |
001 |
1820537 |
||
|
20 |
13 |
WG9525820009 |
Washer |
002 |
1820537 |
||
|
24 |
14 |
Q33214 |
Nut |
001 |
1820537 |
||
|
7 |
15 |
Q150B14195 |
Bolt |
001 |
1820537 |
||
|
26 |
16 |
WG9525820200 |
Tilting explanation |
001 |
1820537 |
||
