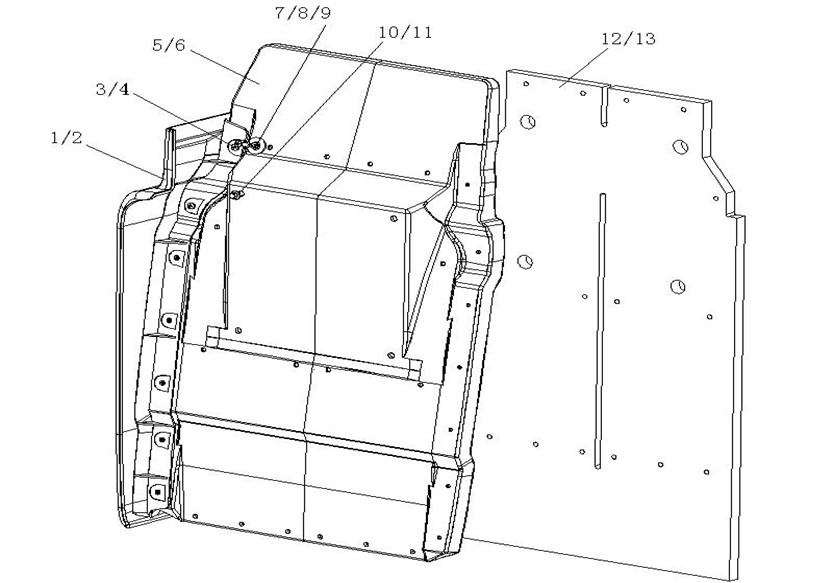

1040003 Rear fender
Unit1040003Detail
|
Unit1040003Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
810W66410-0309 |
MUDGUARD TRIM PLATE |
001 |
1040003 |
||
|
13 |
2 |
810W66410-0308 |
MUDGUARD TRIM PLATE |
001 |
1040003 |
||
|
11 |
3 |
Q2140625 |
Screw |
007 |
1040003 |
||
|
22 |
4 |
Q2140625 |
Screw |
007 |
1040003 |
||
|
6 |
5 |
810W61210-0462 |
MUDGUARDS |
001 |
1040003 |
||
|
17 |
6 |
810W61210-0462 |
MUDGUARDS |
001 |
1040003 |
||
|
31 |
7 |
810W90685-0448 |
NUT |
032 |
1040003 |
||
|
35 |
8 |
Q2716332F31 |
Screw |
032 |
1040003 |
||
|
36 |
9 |
Q40106 |
Washer |
032 |
1040003 |
||
|
10 |
10 |
Q1840825F31 |
Bolt |
004 |
1040003 |
||
|
21 |
11 |
Q1840825F31 |
Bolt |
004 |
1040003 |
||
|
23 |
12 |
810W61230-0205 |
Left inside fender |
001 |
1040003 |
||
|
27 |
13 |
810W61230-0206 |
Right inner fender |
001 |
1040003 |
||
