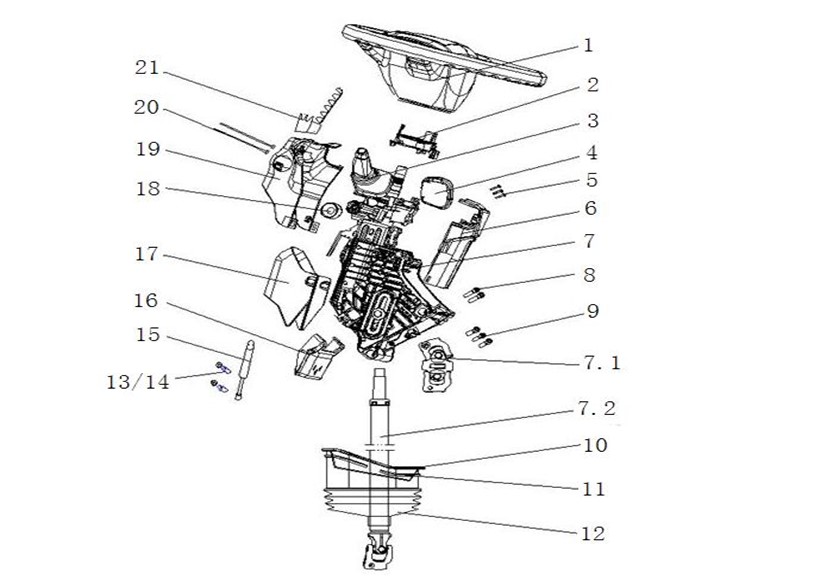

5300167 Steering control mechanism
Unit5300167Detail
|
Unit5300167Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
311 |
1 |
712W46430-0177 |
STEERING WHEEL |
001 |
5300167 |
||
|
315 |
2 |
812W46430-0050 |
Clock spring assembly |
001 |
5300167 |
||
|
322 |
3 |
811W25509-0145 |
Steering column switch(Left) |
001 |
5300167 |
||
|
325 |
4 |
712W25509-0200 |
The right combination switch cover |
001 |
5300167 |
||
|
314 |
5 |
Q2140420 |
Screw |
003 |
5300167 |
||
|
369 |
6 |
810W46113-0118 |
STEERING COLUMN CASING |
001 |
5300167 |
||
|
7 |
7 |
711-46113-6231 |
Steering column assembly |
001 |
5300167 |
||
|
8 |
7.1 |
711-46113-6200 |
Steering column |
001 |
5300167 |
||
|
9 |
7.1.1 |
711W46113-6210 |
Upper Steering column assembly |
001 |
5300167 |
||
|
15 |
7.1.1.1 |
811W46113-6003+001/1 |
001 |
5300167 |
|||
|
178 |
7.2 |
711W46122-0029 |
Shaft assembly |
001 |
5300167 |
||
|
241 |
7.3 |
711W46122-0080 |
Universal joint assembly |
001 |
5300167 |
||
|
289 |
8 |
MQ6W02849-0019 |
COLLAR BOLT |
002 |
5300167 |
||
|
297 |
9 |
MQ6W02849-0018 |
COLLAR BOLT |
003 |
5300167 |
||
|
402 |
10 |
712W96401-1171 |
CUP |
001 |
5300167 |
||
|
406 |
11 |
810W46145-0027 |
CARRIER |
001 |
5300167 |
||
|
395 |
12 |
810W47710-0501 |
BELLOWS |
001 |
5300167 |
||
|
306 |
13 |
850W95302-0001 |
BALL PIN |
002 |
5300167 |
||
|
310 |
14 |
Q33208 |
Nut |
002 |
5300167 |
||
|
301 |
15 |
810W97006-0032 |
Bolt |
001 |
5300167 |
||
|
285 |
16 |
711W46440-0068 |
STEERING COLUMN BRACKET |
001 |
5300167 |
||
|
364 |
17 |
810W46113-0114 |
STEERING COLUMN CASING |
001 |
5300167 |
||
|
317 |
18 |
810W46434-0009 |
The ignition lock cover |
001 |
5300167 |
||
|
328 |
19 |
810W46113-0112 |
STEERING COLUMN CASING |
001 |
5300167 |
||
|
374 |
20 |
712W90490-0697 |
SCREW |
002 |
5300167 |
||
|
342 |
21 |
810W46113-0113 |
BLIND |
001 |
5300167 |
||
|
2 |
22 |
712W46910-0001 |
gasket |
001 |
5300167 |
||
|
293 |
23 |
711W46113-6090 |
Hex Nut |
002 |
5300167 |
||
|
324 |
24 |
Q218B0620 |
Screw |
002 |
5300167 |
||
|
327 |
25 |
812-25452-6589 |
Steering column electrical wiring harness |
001 |
5300167 |
||
|
333 |
26 |
810W90490-0702 |
SCREW |
001 |
5300167 |
||
|
337 |
27 |
810W46113-0117 |
Cover |
001 |
5300167 |
||
|
347 |
28 |
810W90820-0553 |
CHECK PLATE |
002 |
5300167 |
||
|
350 |
29 |
810W25425-0042 |
Bracket |
001 |
5300167 |
||
|
356 |
30 |
MQ6W02849-0018 |
COLLAR BOLT |
003 |
5300167 |
||
|
360 |
31 |
MQ6W02849-0019 |
COLLAR BOLT |
002 |
5300167 |
||
|
378 |
32 |
810W46113-0115 |
PLUG |
001 |
5300167 |
||
|
383 |
33 |
810W46113-0116 |
PLUG |
001 |
5300167 |
||
|
388 |
34 |
810W96410-0677 |
Cover |
001 |
5300167 |
||
|
393 |
35 |
811W97401-0631 |
CABLE BINDER 7,6X368 |
001 |
5300167 |
||
|
400 |
36 |
WG9725470410 |
Bushing |
001 |
5300167 |
||
|
411 |
37 |
190003171392 |
Cable binder |
001 |
5300167 |
||
|
413 |
38 |
811W52185-6060 |
3/2-WAY VALVE |
001 |
5300167 |
||
|
416 |
39 |
Q2100612 |
Hexagon socket head screw |
002 |
5300167 |
||
|
417 |
40 |
WG9000361001 |
Gasket |
004 |
5300167 |
||
|
419 |
41 |
WG9000361002 |
Clip |
004 |
5300167 |
||
|
421 |
42 |
WG9000361003 |
Nut |
004 |
5300167 |
||
|
423 |
43 |
711W97470-1002 |
CABLE BINDER (T30REC4B,t=1-3) |
004 |
5300167 |
||
|
425 |
44 |
MQ4-93300-9084 |
ADHESIVE TAPE |
300 |
5300167 |
||
|
426 |
45 |
WG1642110018 |
Sealing |
070 |
5300167 |
||
|
431 |
46 |
WG9000361207 |
Nozzle |
002 |
5300167 |
||
|
433 |
47 |
WG9000361107 |
Nozzle |
002 |
5300167 |
||
|
435 |
48 |
190003179782 |
Plastic tube |
003 |
5300167 |
||
|
436 |
49 |
WG9725479002 |
cutline |
001 |
5300167 |
||
