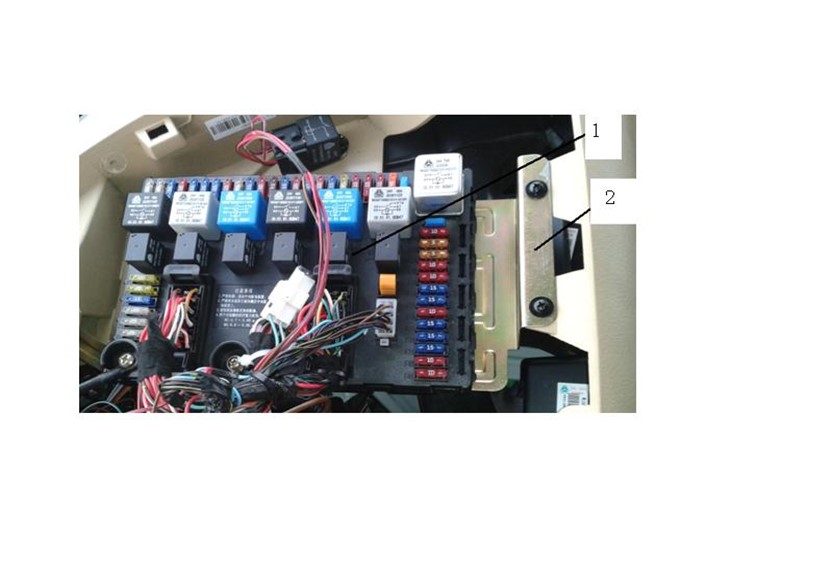

7581919 Central electrical system
Unit7581919Detail
|
Unit7581919Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9716582301 |
Electrical junction box |
001 |
7581919 |
||
|
3 |
1.1 |
WG9716582301+001/1 |
fuse |
004 |
7581919 |
||
|
12 |
1.10 |
WG9716582301+010/1 |
relay |
002 |
7581919 |
||
|
13 |
1.11 |
WG9716582301+011/1 |
relay |
001 |
7581919 |
||
|
14 |
1.12 |
WG9716582301+012/1 |
diode |
002 |
7581919 |
||
|
15 |
1.13 |
WG9716582301+013/1 |
relay |
002 |
7581919 |
||
|
4 |
1.2 |
WG9716582301+002/1 |
fuse |
001 |
7581919 |
||
|
5 |
1.3 |
WG9716582301+003/1 |
fuse |
016 |
7581919 |
||
|
6 |
1.4 |
WG9716582301+004/1 |
fuse |
015 |
7581919 |
||
|
7 |
1.5 |
WG9716582301+005/1 |
fuse |
004 |
7581919 |
||
|
8 |
1.6 |
WG9716582301+006/1 |
fuse |
005 |
7581919 |
||
|
9 |
1.7 |
WG9716582301+007/1 |
fuse |
001 |
7581919 |
||
|
10 |
1.8 |
WG9716582301+008/1 |
relay |
006 |
7581919 |
||
|
11 |
1.9 |
WG9716582301+009/1 |
relay |
002 |
7581919 |
||
|
39 |
2 |
WG9916582102 |
Fixing bracket |
001 |
7581919 |
||
|
73 |
3 |
Q2140612 |
Screw |
004 |
7581919 |
||
|
31 |
4 |
Q40306 |
Spring washer |
004 |
7581919 |
||
|
32 |
5 |
Q40106 |
Washer |
004 |
7581919 |
||
|
33 |
6 |
Q2140510 |
Screw |
001 |
7581919 |
||
|
34 |
7 |
Q40305 |
Spring washer |
001 |
7581919 |
||
|
35 |
8 |
Q40105 |
Washer |
001 |
7581919 |
||
|
36 |
9 |
Q2140610 |
Screw |
001 |
7581919 |
||
|
37 |
10 |
Q40306 |
Spring washer |
001 |
7581919 |
||
|
38 |
11 |
Q40106 |
Washer |
001 |
7581919 |
||
|
41 |
12 |
Q2714816F31 |
Screw |
004 |
7581919 |
||
|
42 |
13 |
Q40306 |
Spring washer |
004 |
7581919 |
||
|
43 |
14 |
WG9716582005 |
Mini control unit |
001 |
7581919 |
||
|
46 |
15 |
AZ9918580015 |
Plate |
001 |
7581919 |
||
|
47 |
16 |
Q2140512 |
Screw |
003 |
7581919 |
||
|
48 |
17 |
Q340B05 |
Nut |
003 |
7581919 |
||
|
49 |
18 |
Q40205 |
Washer |
003 |
7581919 |
||
|
50 |
19 |
Q2140612F31 |
Screw |
003 |
7581919 |
||
|
51 |
20 |
Q40306 |
Spring washer |
003 |
7581919 |
||
|
52 |
21 |
AZ9918580017 |
Plate |
001 |
7581919 |
||
|
54 |
22 |
Q37106 |
Nut |
002 |
7581919 |
||
|
55 |
23 |
Q2714816F31 |
Screw |
004 |
7581919 |
||
|
56 |
24 |
Q40106 |
Washer |
004 |
7581919 |
||
|
57 |
25 |
Q2140612F31 |
Screw |
002 |
7581919 |
||
|
58 |
26 |
Q40306 |
Spring washer |
002 |
7581919 |
||
