7420010 electrical equipment

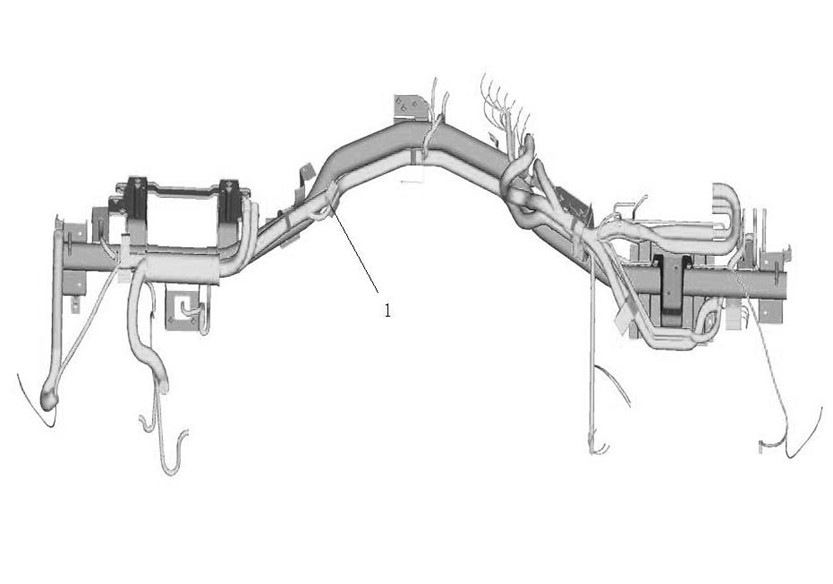

Unit7420010Detail
|
Unit7420010Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
752-25455-6709 |
Wiring |
001 |
7420010 |
||
|
4 |
2 |
WG9725584003 |
20A transfer relay |
001 |
7420010 |
||
|
6 |
3 |
WG9725584025 |
2.7 k Ω resistance |
001 |
7420010 |
||
|
8 |
4 |
WG9725580013 |
10A safety device |
001 |
7420010 |
||
|
13 |
5 |
WG9725580018 |
Safety device 20A |
001 |
7420010 |
||
|
18 |
6 |
WG9725584001 |
Relay-40A |
001 |
7420010 |
||
|
20 |
7 |
Q40306 |
Spring washer |
003 |
7420010 |
||
|
21 |
8 |
Q340B06 |
Nut |
003 |
7420010 |
||
|
22 |
9 |
811W97401-0589 |
CABLE BINDER 4,8X360 |
020 |
7420010 |
||
|
24 |
10 |
WG9725584005 |
Resistance |
003 |
7420010 |
||
|
26 |
11 |
Q32806 |
Nut |
002 |
7420010 |
||
|
27 |
12 |
Q32808 |
nut |
001 |
7420010 |
||
|
28 |
13 |
712W25424-5000 |
INSTALLATION WIRING |
001 |
7420010 |
||
|
31 |
14 |
Q2300516F31 |
Screw assembly |
001 |
7420010 |
||
|
32 |
15 |
712W25424-5008 |
INSTALLATION WIRING |
001 |
7420010 |
||
|
35 |
16 |
752W25441-0004 |
bracket |
001 |
7420010 |
||
|
40 |
17 |
Q40206 |
Washer |
001 |
7420010 |
||
|
41 |
18 |
ZQ340B06 |
Hexagon nuts ,style 1 |
001 |
7420010 |
||
|
42 |
19 |
Q40306 |
Spring washer |
001 |
7420010 |
||
|
43 |
20 |
712W25424-5005 |
T5G right harness guide groove |
001 |
7420010 |
||
|
46 |
21 |
Q2300516F31 |
Screw assembly |
002 |
7420010 |
||
|
47 |
22 |
712W25424-5010 |
T5G right harness guide groove |
001 |
7420010 |
||
|
50 |
23 |
811W25441-0654 |
Left connector mounting bracket |
001 |
7420010 |
||
|
53 |
24 |
811W25441-0656 |
ECU mounting bracket |
001 |
7420010 |
||
|
56 |
25 |
811W25441-0657 |
The right side of the plug mounting bracket |
001 |
7420010 |
||
|
59 |
26 |
811W25441-0787 |
The right framework |
001 |
7420010 |
||
|
62 |
27 |
Q2140816 |
Screw |
006 |
7420010 |
||
|
63 |
28 |
Q2300516F31 |
Screw assembly |
002 |
7420010 |
||
|
64 |
29 |
811W25441-0875 |
The thread on the right side of the lid |
001 |
7420010 |
||
|
67 |
30 |
811W25441-0999 |
Lifted the lid on the left side of the crossed the line |
001 |
7420010 |
||
|
70 |
31 |
Q2300516F31 |
Screw assembly |
010 |
7420010 |
||
|
71 |
32 |
811W25441-6205 |
ECU box |
001 |
7420010 |
||
|
74 |
33 |
Q2204213F31 |
Screw assembly |
002 |
7420010 |
||
|
75 |
34 |
811W62410-0077 |
A box cover |
002 |
7420010 |
||
|
78 |
35 |
811W62410-0073 |
Shield |
001 |
7420010 |
||
|
81 |
36 |
811W25441-0788 |
Pin |
002 |
7420010 |
||
|
85 |
37 |
WG9725580021 |
Diode |
001 |
7420010 |
||
