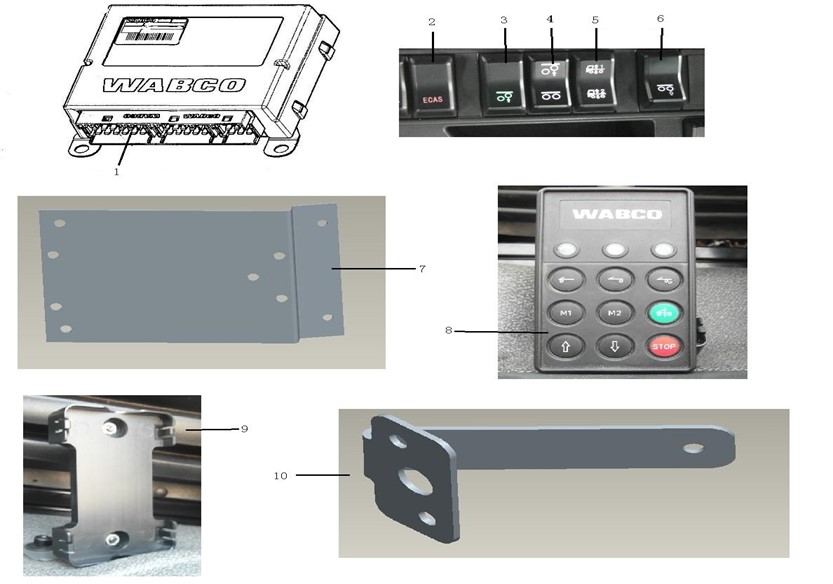

7270004 ECAS electric system
Unit7270004Detail
|
Unit7270004Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
5 |
1 |
WG9925585101 |
ECAS (6 x 2 double point)electronic control unit |
001 |
7270004 |
||
|
1 |
2 |
812W25503-6051 |
lamp |
001 |
7270004 |
||
|
3 |
3 |
812W25503-6052 |
lamp |
001 |
7270004 |
||
|
26 |
4 |
812W25503-6050 |
Switch |
001 |
7270004 |
||
|
28 |
5 |
812W25503-6055 |
Switch |
001 |
7270004 |
||
|
32 |
6 |
812W25503-6073 |
SW |
001 |
7270004 |
||
|
9 |
7 |
712W25441-0029 |
ECAS ECU install bracket |
001 |
7270004 |
||
|
14 |
8 |
WG9925585110 |
ECAS remote control |
001 |
7270004 |
||
|
16 |
9 |
WG9925585111 |
ECAS remote control stand |
001 |
7270004 |
||
|
18 |
10 |
712W25441-0030 |
install bracket |
001 |
7270004 |
||
|
7 |
11 |
Q2140610 |
Screw |
003 |
7270004 |
||
|
8 |
12 |
Q40406 |
Lightweight spring washer |
003 |
7270004 |
||
|
13 |
13 |
Q340B06 |
Nut |
002 |
7270004 |
||
|
22 |
14 |
810-94289-0199 |
TUBE |
002 |
7270004 |
||
|
23 |
15 |
Q2140830 |
Screw |
002 |
7270004 |
||
|
24 |
16 |
Q40406 |
Lightweight spring washer |
002 |
7270004 |
||
