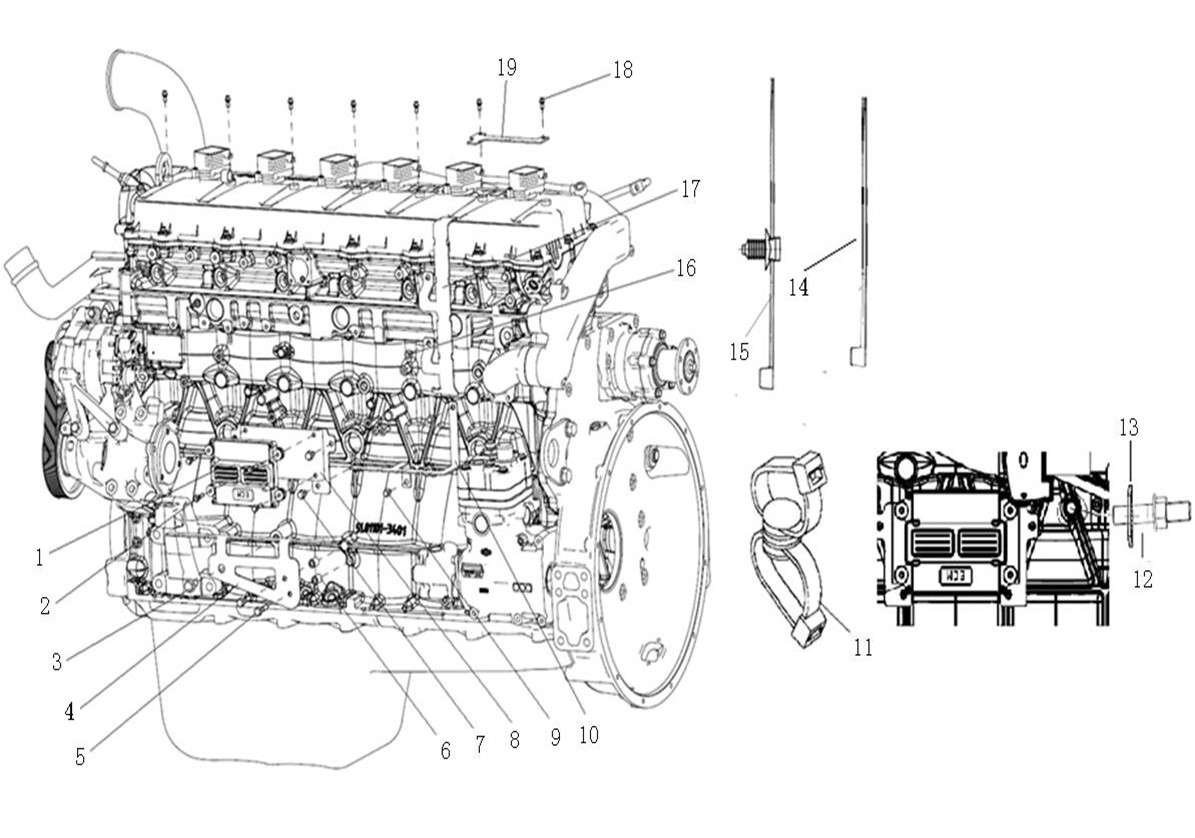

2630031 T7-CNG车型用线束及ECM(MT13)
Unit2630031Detail
|
Unit2630031Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
VG1238090006 |
ECM |
001 |
2630031 |
||
|
3 |
2 |
MQ6-03216-8206 |
HEX BOLT M6X30-10.9-MAN183-B1 |
004 |
2630031 |
||
|
20 |
3 |
MQ6-03216-8605 |
HEX BOLT M14X25-10.9-MAN183-B1 |
001 |
2630031 |
||
|
18 |
4 |
202V25441-0002 |
harness bracket |
001 |
2630031 |
||
|
21 |
5 |
MQ6-03216-8308 |
HEX BOLT M8X40-10.9-MAN183-B1 |
002 |
2630031 |
||
|
22 |
6 |
202V13211-0020 |
block |
002 |
2630031 |
||
|
12 |
7 |
MQ6-03216-8303 |
HEX BOLT M8X16-10.9-MAN183-B1 |
004 |
2630031 |
||
|
7 |
8 |
202V13301-5002 |
ECM支架 |
001 |
2630031 |
||
|
17 |
9 |
Q1860812 |
Bolt |
002 |
2630031 |
||
|
15 |
10 |
202V25441-0007 |
ECU harness bracket |
001 |
2630031 |
||
|
36 |
11 |
202V97401-0556 |
Cable Tie Assembly |
001 |
2630031 |
||
|
38 |
12 |
200V91020-0310 |
THREADED PIN M10/M10X47-8.8-P4R |
001 |
2630031 |
||
|
40 |
13 |
MQ6-16169-0047 |
Lock-gasket |
001 |
2630031 |
||
|
27 |
14 |
190003171392 |
Cable binder |
005 |
2630031 |
||
|
24 |
15 |
200V97401-0557 |
CONDUCTOR HOLDER EINFACH |
002 |
2630031 |
||
|
35 |
16 |
Q1840610 |
Bolt |
007 |
2630031 |
||
|
31 |
17 |
202V25441-0009 |
bracket |
001 |
2630031 |
||
|
43 |
18 |
MQ6-03216-8303 |
HEX BOLT M8X16-10.9-MAN183-B1 |
001 |
2630031 |
||
|
28 |
19 |
202V25441-0005 |
bracket |
001 |
2630031 |
||
|
13 |
20 |
812W25458-6005 |
MT13-CNG motor wiring harness |
001 |
2630031 |
||
|
34 |
21 |
Q1860812 |
Bolt |
002 |
2630031 |
||
|
41 |
22 |
202V09701-0008 |
braket(MT13) |
001 |
2630031 |
||
