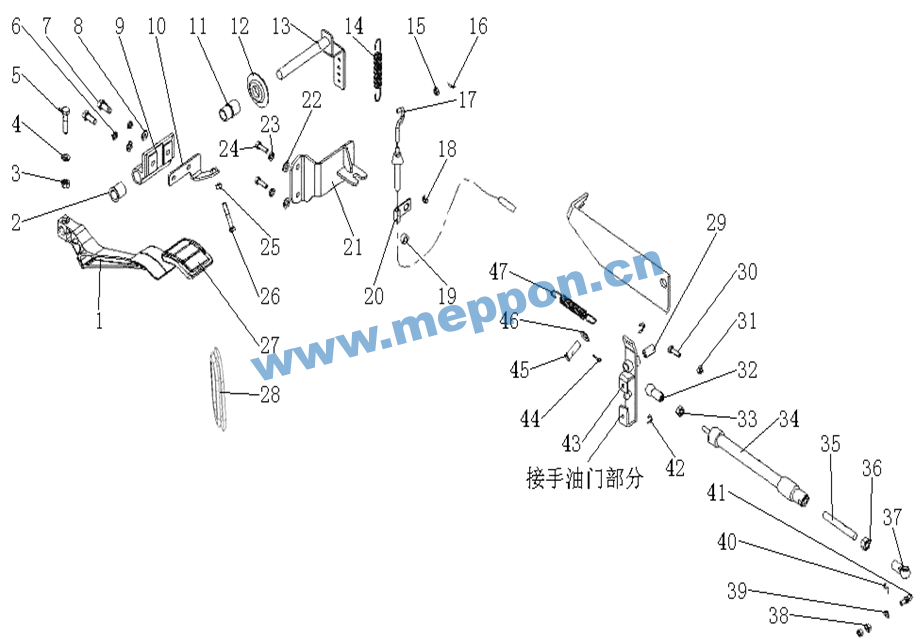

2570106 HOWO7 throttle control system (cable structure, cancel the hand throttle)
Unit2570106Detail
Unit2570106Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
3 |
1 |
AZ9719570002 |
Accelerator pedal |
001 |
2570106 |
||
9 |
2 |
WG9719570006 |
Bushing |
001 |
2570106 |
||
5 |
3 |
Q340B08 |
Nut |
001 |
2570106 |
||
6 |
4 |
Q40108 |
Washer |
001 |
2570106 |
||
4 |
5 |
Q150B0835 |
Bolt |
001 |
2570106 |
||
21 |
6 |
Q40308 |
Spring washer |
002 |
2570106 |
||
19 |
7 |
Q150B0820 |
Bolt |
002 |
2570106 |
||
20 |
8 |
Q40108 |
Washer |
002 |
2570106 |
||
11 |
9 |
AZ9719570007 |
Bracket |
001 |
2570106 |
||
12 |
10 |
AZ9719570085 |
Damper assembly |
001 |
2570106 |
||
22 |
11 |
AZ9719570008 |
Bushing |
001 |
2570106 |
||
23 |
12 |
WG9719570009 |
Bushing |
001 |
2570106 |
||
7 |
13 |
WG9719570081 |
Control shaft assembly |
001 |
2570106 |
||
35 |
14 |
1288 570057 |
Tension spring |
001 |
2570106 |
||
41 |
15 |
Q40106 |
Washer |
001 |
2570106 |
||
40 |
16 |
Q5002014 |
Pin |
001 |
2570106 |
||
117 |
17 |
WG9725571001 |
accelerrator dragline |
001 |
2570106 |
||
42 |
18 |
Q350B06T15 |
Nut |
002 |
2570106 |
||
46 |
19 |
AZ9725570043 |
Rubber band |
001 |
2570106 |
||
44 |
20 |
WG9725570044 |
Clip |
001 |
2570106 |
||
25 |
21 |
AZ9719570073 |
Bracket components |
001 |
2570106 |
||
34 |
22 |
Q40108 |
Washer |
002 |
2570106 |
||
33 |
23 |
Q40308 |
Spring washer |
002 |
2570106 |
||
32 |
24 |
Q150B0815 |
Bolt |
002 |
2570106 |
||
18 |
25 |
Q340B06 |
Nut |
001 |
2570106 |
||
17 |
26 |
Q150B0640 |
Bolt |
001 |
2570106 |
||
1 |
27 |
WG9719570001 |
accelerator pedal sheath |
001 |
2570106 |
||
84 |
28 |
AZ9725570042 |
Bushing |
001 |
2570106 |
||
55 |
29 |
WG99014180012 |
Bushing |
001 |
2570106 |
||
57 |
30 |
Q150B0620 |
Bolt |
001 |
2570106 |
||
58 |
31 |
Q340B06 |
Nut |
001 |
2570106 |
||
69 |
32 |
190003963623 |
The spherical articulated with lock ring |
001 |
2570106 |
||
70 |
32.1 |
AZ9003930073 |
Spring retainer ring (R13 DIN71805) |
001 |
2570106 |
||
109 |
32.2 |
WG9003960014 |
fork |
001 |
2570106 |
||
73 |
33 |
Q340B08 |
Nut |
001 |
2570106 |
||
65 |
34 |
WG9100570014 |
Exhaust Brake Cylinder For Cut Oil |
001 |
2570106 |
||
67 |
35 |
WG9012570062 |
Screw rod |
001 |
2570106 |
||
74 |
36 |
Q340B10 |
Nut |
001 |
2570106 |
||
75 |
37 |
WG92 570025 |
Spherical articulated assembly |
001 |
2570106 |
||
79 |
38 |
Q340B06 |
Nut |
002 |
2570106 |
||
82 |
39 |
Q40506 |
Heavy duty spring washer |
001 |
2570106 |
||
78 |
40 |
190003936513 |
Clamp |
001 |
2570106 |
||
80 |
41 |
WG9003963313 |
Ball pin (A10DIN71803) |
001 |
2570106 |
||
72 |
42 |
190003936514 |
Clamp |
001 |
2570106 |
||
94 |
43 |
WG9725570165 |
The lever assembly |
001 |
2570106 |
||
64 |
44 |
Q5003216 |
Pin |
001 |
2570106 |
||
61 |
45 |
WG9012570084 |
Pin |
001 |
2570106 |
||
63 |
46 |
Q40110 |
Washer |
001 |
2570106 |
||
60 |
47 |
199100570065 |
Tension spring |
001 |
2570106 |
||
36 |
48 |
AZ9118570012 |
Oil supply control system |
001 |
2570106 |
||
39 |
49 |
Q5100618 |
Pin |
001 |
2570106 |
||
43 |
50 |
190003171697 |
Cable binder |
002 |
2570106 |
||
59 |
51 |
Q43680 |
Circlip |
001 |
2570106 |
||
83 |
52 |
AZ9725570057 |
Bushing |
001 |
2570106 |
||
85 |
53 |
WG1642160193 |
Cover |
001 |
2570106 |
