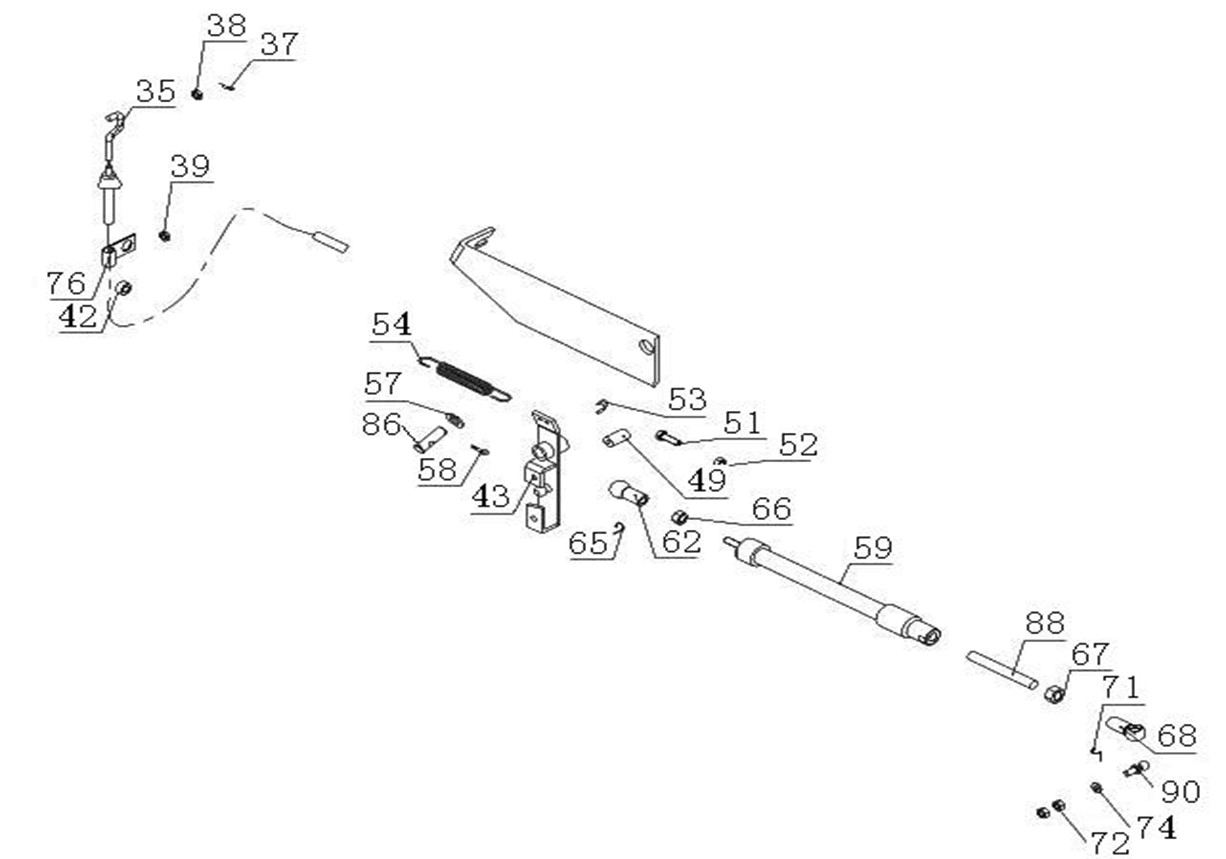

2570087 Hao jun fuel control system
Unit2570087Detail
Unit2570087Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
WG9162570090 |
handle |
001 |
2570087 |
||
2 |
2 |
WG9162570090/1 |
handle () |
001 |
2570087 |
||
3 |
3 |
190003871252 |
Nut |
003 |
2570087 |
||
4 |
4 |
Q40108 |
Washer |
002 |
2570087 |
||
5 |
5 |
190003932023 |
Wave washer |
001 |
2570087 |
||
6 |
6 |
190003802432 |
Bolt |
001 |
2570087 |
||
7 |
7 |
190003963623 |
The spherical articulated with lock ring |
002 |
2570087 |
||
8 |
8 |
AZ9003930073 |
Spring retainer ring (R13 DIN71805) |
001 |
2570087 |
||
9 |
9 |
AZ9003960014 |
Ball joint (B13 DIN71805) |
001 |
2570087 |
||
10 |
10 |
190003936514 |
Clamp |
007 |
2570087 |
||
11 |
11 |
190003963320 |
The ball head pin (bl3 * 5 DIN71803) |
002 |
2570087 |
||
12 |
12 |
WG9162570458 |
double-thread screw |
001 |
2570087 |
||
13 |
13 |
WG9162570458/1 |
double-thread screw |
001 |
2570087 |
||
14 |
14 |
WG9162570306 |
Engineering plastic rod |
001 |
2570087 |
||
15 |
15 |
WG9162570306/1 |
Engineering plastic rod |
001 |
2570087 |
||
16 |
16 |
WG9162570144 |
Adjustment screw |
001 |
2570087 |
||
17 |
17 |
WG9162570144/1 |
Adjustment screw |
001 |
2570087 |
||
18 |
18 |
WG9162575079 |
accelerator pedal assembly |
001 |
2570087 |
||
19 |
19 |
WG9162575079/1 |
accelerator pedal assembly () |
001 |
2570087 |
||
21 |
21 |
Q43650 |
Circlip |
001 |
2570087 |
||
22 |
22 |
AZ9100572019 |
Washer |
002 |
2570087 |
||
23 |
23 |
AZ9100572017 |
Pressure spring (2x10x38.5 DIN2098) |
001 |
2570087 |
||
24 |
24 |
AZ9100572014 |
Bolt |
001 |
2570087 |
||
27 |
27 |
WG9162570046 |
Bracket |
001 |
2570087 |
||
28 |
28 |
WG9162570046/1 |
Stents () |
001 |
2570087 |
||
29 |
29 |
WG9162570069 |
Engine accelerator support |
001 |
2570087 |
||
30 |
30 |
WG9162570069/1 |
Engine accelerator support |
001 |
2570087 |
||
31 |
31 |
Q5270524 |
Spiral spring pin |
001 |
2570087 |
||
32 |
32 |
Q340B08 |
Nut |
001 |
2570087 |
||
33 |
33 |
Q150B0835 |
Bolt |
001 |
2570087 |
||
34 |
34 |
81.96020.0369 |
Block |
001 |
2570087 |
||
35 |
35 |
WG9325570060 |
throttle cable assembly |
001 |
2570087 |
||
37 |
37 |
Q5002014 |
Pin |
001 |
2570087 |
||
38 |
38 |
Q40106 |
Washer |
001 |
2570087 |
||
39 |
39 |
Q350B06T15 |
Nut |
002 |
2570087 |
||
40 |
40 |
190003171697 |
Cable binder |
002 |
2570087 |
||
42 |
42 |
AZ9725570043 |
Rubber band |
001 |
2570087 |
||
43 |
43 |
AZ9725570100 |
leverage assembly |
001 |
2570087 |
||
44 |
44 |
AZ9725570101 |
Bracket |
001 |
2570087 |
||
45 |
45 |
AZ9725570103 |
Lever |
001 |
2570087 |
||
46 |
46 |
199012570088 |
Bracket |
001 |
2570087 |
||
48 |
48 |
190003963320 |
The ball head pin (bl3 * 5 DIN71803) |
001 |
2570087 |
||
49 |
49 |
WG99014180012 |
Bushing |
001 |
2570087 |
||
50 |
50 |
WG99014180012/1 |
Bush (north twin gold) |
001 |
2570087 |
||
51 |
51 |
Q150B0620 |
Bolt |
001 |
2570087 |
||
52 |
52 |
Q340B06 |
Nut |
001 |
2570087 |
||
53 |
53 |
Q43680 |
Circlip |
001 |
2570087 |
||
54 |
54 |
199100570065 |
Tension spring |
001 |
2570087 |
||
57 |
57 |
Q40110 |
Washer |
002 |
2570087 |
||
58 |
58 |
Q5003216 |
Pin |
002 |
2570087 |
||
59 |
59 |
WG9100570014 |
Exhaust Brake Cylinder For Cut Oil |
001 |
2570087 |
||
60 |
60 |
WG9100570014/1 |
Exhaust Brake Cylinder For Cut Oil |
001 |
2570087 |
||
62 |
62 |
190003963623 |
The spherical articulated with lock ring |
001 |
2570087 |
||
63 |
63 |
AZ9003930073 |
Spring retainer ring (R13 DIN71805) |
001 |
2570087 |
||
64 |
64 |
AZ9003960014 |
Ball joint (B13 DIN71805) |
001 |
2570087 |
||
65 |
65 |
190003936514 |
Clamp |
001 |
2570087 |
||
66 |
66 |
Q340B08 |
Nut |
001 |
2570087 |
||
67 |
67 |
Q340B10 |
Nut |
001 |
2570087 |
||
68 |
68 |
WG92 570025 |
Spherical articulated assembly |
001 |
2570087 |
||
69 |
69 |
WG92 570025/1 |
Spherical articulated assembly |
001 |
2570087 |
||
70 |
70 |
WG9003930072/1 |
Spring retainer ring (R10DIN71805) |
001 |
2570087 |
||
71 |
71 |
190003936513 |
Clamp |
001 |
2570087 |
||
72 |
72 |
Q340B06 |
Nut |
002 |
2570087 |
||
74 |
74 |
Q40506 |
Heavy duty spring washer |
001 |
2570087 |
||
75 |
75 |
WG9325570060/3 |
throttle cable assembly (before fourth wire) |
001 |
2570087 |
||
76 |
76 |
WG9725570044 |
Clip |
001 |
2570087 |
||
77 |
77 |
WG9725570044/2 |
Single pipe clamp (xinxiang xinyi) |
001 |
2570087 |
||
78 |
78 |
WG9123570022 |
Sleeve |
001 |
2570087 |
||
79 |
79 |
WG9123570022/1 |
Sleeve (jiashan ding yi) |
001 |
2570087 |
||
80 |
80 |
WG9100572018 |
Bolt |
001 |
2570087 |
||
81 |
81 |
WG9100572018/1 |
Bolt (zibo shengwang) |
001 |
2570087 |
||
82 |
82 |
WG9100572015 |
Tube |
001 |
2570087 |
||
83 |
83 |
WG9100572015/1 |
Pipe |
001 |
2570087 |
||
84 |
84 |
WG9014180013 |
Sleeve |
001 |
2570087 |
||
85 |
85 |
WG9014180013/1 |
Sleeve (zibo hui xinyang) |
001 |
2570087 |
||
86 |
86 |
WG9012570084 |
Pin |
002 |
2570087 |
||
87 |
87 |
WG9012570084/1 |
Pin shaft (yuyao east ring) |
001 |
2570087 |
||
88 |
88 |
WG9012570062 |
Screw rod |
001 |
2570087 |
||
89 |
89 |
WG9012570062/1 |
Screw rod |
001 |
2570087 |
||
90 |
90 |
WG9003963313 |
Ball pin (A10DIN71803) |
001 |
2570087 |
||
91 |
91 |
WG9003963313/1 |
Ball pin (A10DIN71803) (zou ping o fa) |
001 |
2570087 |
