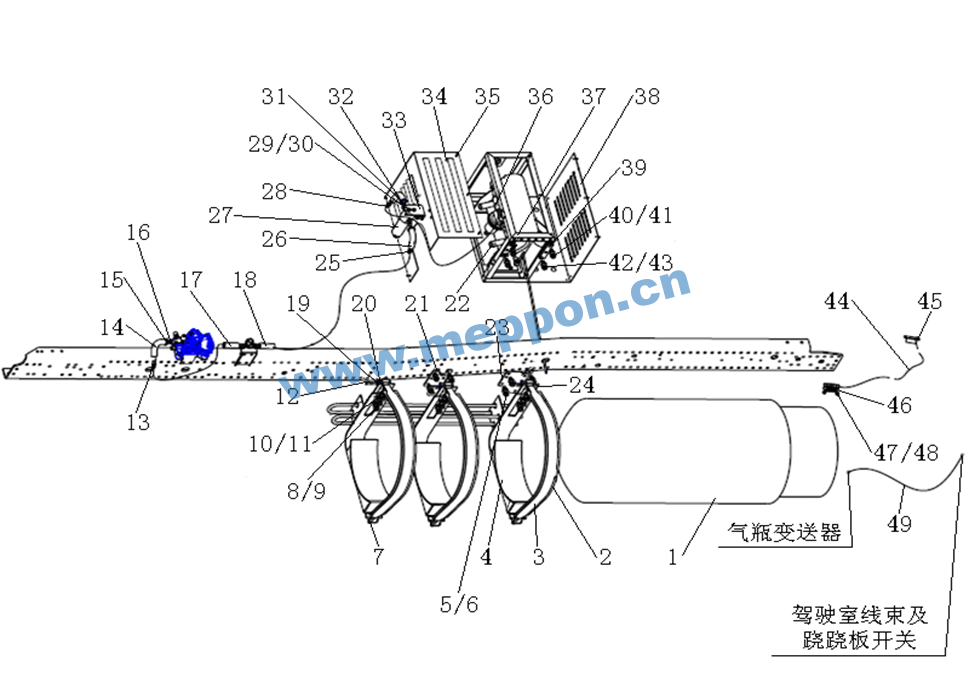

2551066 Fuel gas supply device
Unit2551066Detail
Unit2551066Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
WG9925553059 |
Liquefied Natural Gas supply device |
001 |
2551066 |
||
61 |
2 |
WG9725551232 |
Rubber buffer |
003 |
2551066 |
||
63 |
3 |
WG9725551233 |
Drawstring |
003 |
2551066 |
||
59 |
4 |
WG9725551231 |
Rubber buffer |
003 |
2551066 |
||
51 |
5 |
ZQ1811450 |
Hexagon flange bolts with teeth |
008 |
2551066 |
||
52 |
6 |
ZQ32514 |
Hexagon flange nuts with teeth |
008 |
2551066 |
||
97 |
7 |
ZQ32012 |
Hexagon nuts with flange |
003 |
2551066 |
||
6 |
8 |
ZQ1811250 |
Hexagon flange bolts with teeth |
001 |
2551066 |
||
7 |
9 |
ZQ32512 |
Hexagon flange nuts with teeth |
001 |
2551066 |
||
4 |
10 |
ZQ1811645 |
Hexagon flange bolts with teeth |
010 |
2551066 |
||
5 |
11 |
ZQ32516 |
Hexagon flange nuts with teeth |
010 |
2551066 |
||
66 |
12 |
Q5101275 |
Pin |
003 |
2551066 |
||
24 |
13 |
WG9115550180 |
Pressure reducing valve changeover joint |
001 |
2551066 |
||
22 |
14 |
WG9718557084 |
Hose |
001 |
2551066 |
||
44 |
15 |
190003989340 |
Hose clamp |
008 |
2551066 |
||
8 |
16 |
WG9115550380 |
Low pressure filter connector |
001 |
2551066 |
||
26 |
17 |
WG9718550083 |
LNG air intake hose |
001 |
2551066 |
||
20 |
18 |
WG9718550083 |
LNG air intake hose |
001 |
2551066 |
||
67 |
19 |
Q40112 |
Washer |
003 |
2551066 |
||
68 |
20 |
Q5004020 |
Pin |
003 |
2551066 |
||
47 |
21 |
WG9725555341 |
Bracket |
001 |
2551066 |
||
42 |
22 |
WG9725550039 |
Hose |
002 |
2551066 |
||
49 |
23 |
WG9725551344 |
bracket |
001 |
2551066 |
||
57 |
24 |
WG9725551230 |
Bracket |
003 |
2551066 |
||
18 |
25 |
WG9115550180 |
Pressure reducing valve changeover joint |
001 |
2551066 |
||
16 |
26 |
WG9115550082 |
Connect the hose to the reducer |
001 |
2551066 |
||
28 |
27 |
WG9925553110 |
Low pressure filter |
001 |
2551066 |
||
30 |
27.1 |
WG9925553110+001/1 |
Low pressure filter element (jinan weimar) |
001 |
2551066 |
||
31 |
27.2 |
WG9925553110+002/1 |
Low pressure filter housing (jinan weimar) |
001 |
2551066 |
||
32 |
27.3 |
WG9925553110+003/1 |
Low pressure filter sealing ring (jinan weimar) |
001 |
2551066 |
||
34 |
27.4 |
WG9925553110+001/2 |
Low pressure filter element (chengdu amex) |
001 |
2551066 |
||
35 |
27.5 |
WG9925553110+002/2 |
Low pressure filter housing (chengdu amex) |
001 |
2551066 |
||
36 |
27.6 |
WG9925553110+003/2 |
Low pressure filter sealing ring (chengdu amex) |
001 |
2551066 |
||
12 |
28 |
WG9115550180 |
Pressure reducing valve changeover joint |
001 |
2551066 |
||
40 |
29 |
ZQ1811445 |
Hexagon flange bolts with teeth |
002 |
2551066 |
||
41 |
30 |
ZQ32514 |
Hexagon flange nuts with teeth |
002 |
2551066 |
||
39 |
31 |
ZQ1801030 |
Hexagon flange bolts with teeth |
002 |
2551066 |
||
10 |
32 |
WG9718557084 |
Hose |
001 |
2551066 |
||
37 |
33 |
WG9725550683 |
Bracket |
001 |
2551066 |
||
80 |
34 |
WG9725550487 |
Carvuretor cover |
001 |
2551066 |
||
84 |
35 |
AZ9000310023 |
Hexagon flange drilling screws with tapping screw thread |
017 |
2551066 |
||
14 |
36 |
WG9718550082 |
Pressure reducer connection hose |
001 |
2551066 |
||
55 |
37 |
WG9725550685 |
washer |
002 |
2551066 |
||
82 |
38 |
WG9725550485 |
Carvuretor cover |
001 |
2551066 |
||
53 |
39 |
WG9925554024 |
Plate |
004 |
2551066 |
||
92 |
40 |
ZQ1811660TF2 |
Hexagon flange bolts with teeth |
002 |
2551066 |
||
93 |
41 |
ZQ1811460TF2 |
Hexagon flange bolts with teeth |
002 |
2551066 |
||
94 |
42 |
ZQ32514 |
Hexagon flange nuts with teeth |
002 |
2551066 |
||
95 |
43 |
ZQ32516 |
Hexagon flange nuts with teeth |
002 |
2551066 |
||
89 |
44 |
AZ9926770032 |
Wiring |
001 |
2551066 |
||
85 |
45 |
WG9918580071 |
Alarm of gas leakage |
001 |
2551066 |
||
87 |
46 |
WG9918580073 |
Sensor of gas leakage |
001 |
2551066 |
||
90 |
47 |
ZQ1840620 |
Hexagon bolts with flange |
002 |
2551066 |
||
91 |
48 |
ZQ32006 |
Hexagon nuts with flange |
002 |
2551066 |
||
75 |
49 |
AZ9926770022 |
Wiring harness |
001 |
2551066 |
||
45 |
50 |
WG1603840030 |
Hose |
002 |
2551066 |
||
69 |
51 |
Q68610F4 |
Clip |
007 |
2551066 |
||
76 |
52 |
Q150B1245 |
Bolt |
005 |
2551066 |
||
77 |
53 |
Q33212 |
Nut |
005 |
2551066 |
||
78 |
54 |
Q150B1445 |
Bolt |
006 |
2551066 |
||
79 |
55 |
Q33214 |
Nut |
006 |
2551066 |
||
98 |
56 |
ZQ1840620 |
Hexagon bolts with flange |
007 |
2551066 |
||
99 |
57 |
ZQ32006 |
Hexagon nuts with flange |
007 |
2551066 |
||
100 |
58 |
WG9918580081 |
Alarm of gas leakage |
001 |
2551066 |
||
102 |
59 |
WG9925550812 |
LNG gas cylinder bottom defend bracket |
001 |
2551066 |
||
104 |
60 |
ZQ1801425 |
Hexagon flange bolts with teeth |
006 |
2551066 |
||
105 |
61 |
Q40114 |
Washer |
006 |
2551066 |
