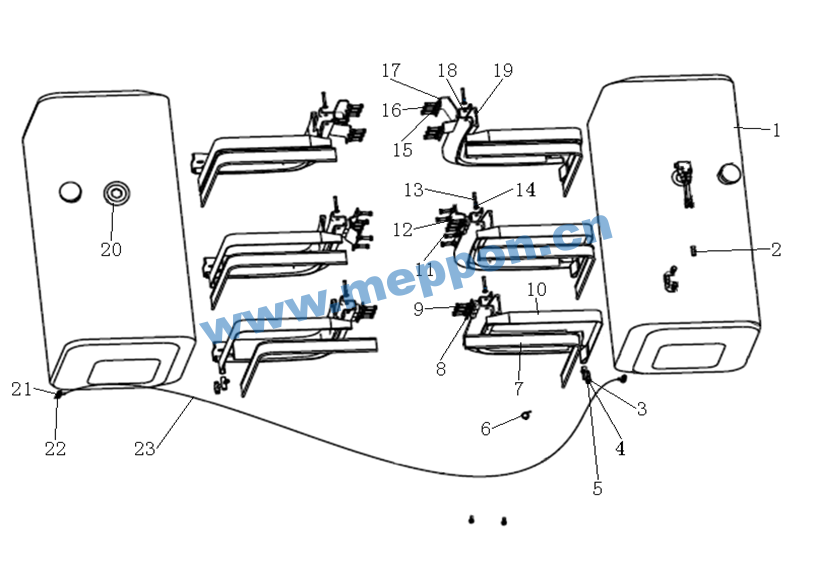

2550764 700L assistant Al-tank fuel system
Unit2550764Detail
Unit2550764Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
WG9925550012 |
700L aluminum alloy square oil box (rubber factory) |
001 |
2550764 |
||
33 |
2 |
190003179045 |
Shield sleeve |
160 |
2550764 |
||
23 |
3 |
WG9925550064 |
pin |
003 |
2550764 |
||
49 |
4 |
810W97461-0014 |
PIN F SPANNBAND |
003 |
2550764 |
||
25 |
5 |
WG9925550065 |
CYLINDER SCREW |
003 |
2550764 |
||
32 |
6 |
190003171697 |
Cable binder |
006 |
2550764 |
||
20 |
7 |
WG9925550062 |
base for strap |
003 |
2550764 |
||
39 |
8 |
WG9925551061 |
wedge backing plate |
002 |
2550764 |
||
48 |
9 |
ZQ1811445TF6 |
Hexagon flange bolts with teeth |
007 |
2550764 |
||
18 |
10 |
WG9925550061 |
strap |
003 |
2550764 |
||
28 |
11 |
Q40116 |
Washer |
003 |
2550764 |
||
42 |
12 |
WG9925552062 |
transition |
001 |
2550764 |
||
27 |
13 |
Q5101675 |
Pin |
003 |
2550764 |
||
29 |
14 |
Q5004025 |
Pin |
003 |
2550764 |
||
17 |
15 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
018 |
2550764 |
||
47 |
16 |
ZQ1811435TF6 |
Hexagon flange bolts with teeth |
012 |
2550764 |
||
45 |
17 |
WG9925550099 |
Bracket |
001 |
2550764 |
||
5 |
18 |
WG9925550063 |
base for bracket |
003 |
2550764 |
||
3 |
19 |
WG9925550060 |
tank bracket |
003 |
2550764 |
||
30 |
20 |
WG9725550160 |
Sensor cover |
001 |
2550764 |
||
36 |
21 |
190003962621 |
Hollow bolt |
002 |
2550764 |
||
34 |
22 |
WG9725550026 |
Nozzle |
002 |
2550764 |
||
37 |
23 |
AZ9725550121 |
Plastic tube |
010 |
2550764 |
||
38 |
24 |
AZ9925540056 |
Plate |
002 |
2550764 |
