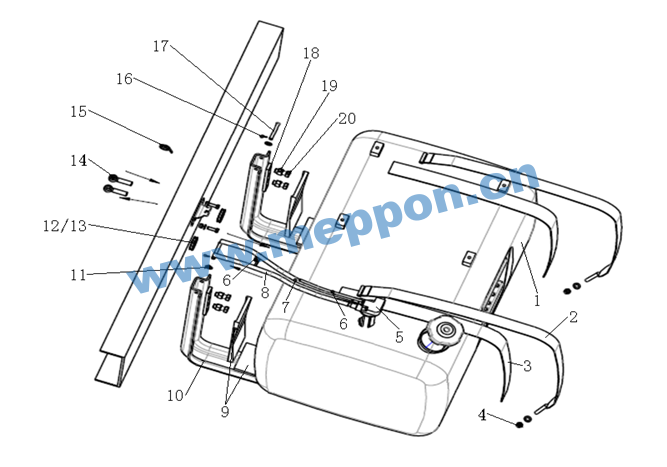

2550685 300L fuel tank fuel system (D20/300 frame / 620×540 section fuel tank)
Unit2550685Detail
Unit2550685Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
WG9725550300 |
Square aluminum alloy fuel tank assembly (300L) |
001 |
2550685 |
||
46 |
2 |
WG9925550843 |
fuel tank drawstring |
002 |
2550685 |
||
48 |
3 |
WG9925550842 |
PACKING F SPANNBAND |
002 |
2550685 |
||
54 |
4 |
WG9925550821 |
sleeve nut |
002 |
2550685 |
||
3 |
5 |
WG9925550004 |
Fuel level sensor |
001 |
2550685 |
||
25 |
6 |
AZ9112550121 |
Plastic tube |
050 |
2550685 |
||
22 |
7 |
AZ9725550121 |
Plastic tube |
430 |
2550685 |
||
23 |
8 |
AZ9725550121 |
Plastic tube |
400 |
2550685 |
||
20 |
9 |
WG9725550202 |
Cushion |
004 |
2550685 |
||
42 |
10 |
WG9925550844 |
Fuel tank bracket |
002 |
2550685 |
||
57 |
11 |
Q40116 |
Washer |
002 |
2550685 |
||
24 |
12 |
AZ9725550121 |
Plastic tube |
150 |
2550685 |
||
27 |
13 |
190003179045 |
Shield sleeve |
160 |
2550685 |
||
28 |
14 |
811W98181-0001 |
Pipe joint (16 x2 tubing) |
002 |
2550685 |
||
26 |
15 |
190003171697 |
Cable binder |
006 |
2550685 |
||
19 |
16 |
Q5004020 |
Pin |
002 |
2550685 |
||
56 |
17 |
Q5101675 |
Pin |
002 |
2550685 |
||
44 |
18 |
WG9925550017 |
Plate |
002 |
2550685 |
||
32 |
19 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
006 |
2550685 |
||
31 |
20 |
ZQ1811470TF6 |
Hexagon flange bolts with teeth |
002 |
2550685 |
||
30 |
21 |
ZQ1811460TF6 |
Hexagon flange bolts with teeth |
004 |
2550685 |
||
34 |
22 |
WG9725550111 |
Washer |
003 |
2550685 |
||
37 |
23 |
WG9925550076 |
Bracket |
001 |
2550685 |
||
39 |
24 |
ZQ1841030TF6 |
Hexagon bolts with flange |
002 |
2550685 |
||
40 |
25 |
ZQ32010T13F6 |
Hexagon nuts with flange |
002 |
2550685 |
||
50 |
26 |
WG9925550841 |
PIN UNTEN |
002 |
2550685 |
||
52 |
27 |
WG9X25550009 |
SCREW |
002 |
2550685 |
||
58 |
28 |
WG9925550073 |
plug |
008 |
2550685 |
||
60 |
29 |
WG9925552003 |
platen |
001 |
2550685 |
