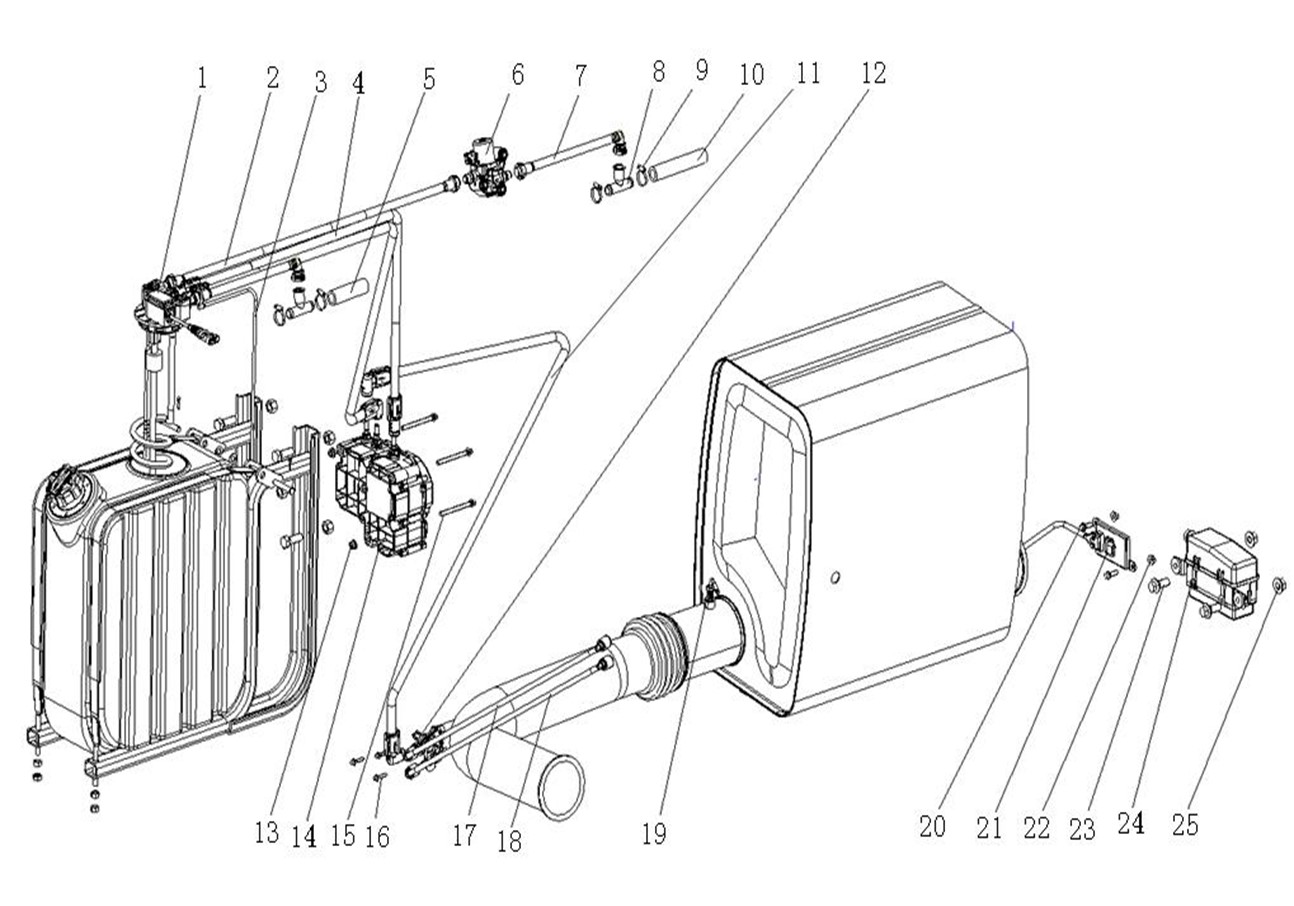

2542612 SCR system
Unit2542612Detail
Unit2542612Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
202V27120-0002 |
Urea liquid level sensor (heating) |
001 |
2542612 |
||
56 |
2 |
202V27120-0022 |
urea tank heating pipe(valve-tank) |
001 |
2542612 |
||
4 |
3 |
AZ9112550120 |
Polyamide tube |
030 |
2542612 |
||
9 |
4 |
WG1034120170 |
scr heating urea pipe(tank-pump,pump-tank) |
001 |
2542612 |
||
49 |
5 |
202V27120-0193 |
hose |
001 |
2542612 |
||
60 |
6 |
WG1034120011 |
Coolant check valve |
001 |
2542612 |
||
54 |
7 |
202V27120-0012 |
urea tank heating pipe(tank-valve) |
001 |
2542612 |
||
52 |
8 |
202V98131-9014 |
valve |
002 |
2542612 |
||
45 |
9 |
190003989301 |
Hose clamp |
006 |
2542612 |
||
46 |
10 |
202V27120-0192 |
hose |
001 |
2542612 |
||
11 |
11 |
WG1034120281 |
pipe |
001 |
2542612 |
||
28 |
12 |
202V27120-0008 |
SCR |
001 |
2542612 |
||
30 |
12.1 |
202V27120-0008+001/1 |
Gasket (E301) |
001 |
2542612 |
||
31 |
12.2 |
202V27120-0008+002/1 |
Cooling water connector (E301) |
001 |
2542612 |
||
32 |
12.3 |
202V27120-0008+003/1 |
Thermal shield (E301) |
001 |
2542612 |
||
27 |
13 |
ZQ32008 |
Hexagon nuts with flange |
003 |
2542612 |
||
13 |
14 |
202V27120-0007 |
SCR Pump |
001 |
2542612 |
||
15 |
14.1 |
202V27120-0007+001/1 |
Filter (E301) |
001 |
2542612 |
||
17 |
14.2 |
202V27120-0007+002/1 |
Filter cover (E301) |
001 |
2542612 |
||
18 |
14.3 |
202V27120-0007+003/1 |
Into the liquid pipe joint (E301) |
001 |
2542612 |
||
19 |
14.4 |
202V27120-0007+004/1 |
The fluid coupling (E301) |
001 |
2542612 |
||
20 |
14.5 |
202V27120-0007+005/1 |
Reflux pipe joint (E301) |
001 |
2542612 |
||
26 |
15 |
ZQ1840890 |
Hexagon bolts with flange |
003 |
2542612 |
||
36 |
16 |
ZQ1840625 |
Hexagon bolts with flange |
003 |
2542612 |
||
5 |
17 |
202V27120-0003 |
PIPE |
001 |
2542612 |
||
7 |
18 |
202V27120-0004 |
pipe |
001 |
2542612 |
||
39 |
19 |
WG1034121033 |
Exhaust temperature sensor |
001 |
2542612 |
||
41 |
20 |
ZQ1840825 |
Hexagon bolts with flange |
002 |
2542612 |
||
37 |
21 |
WG1034121032 |
NOx sensor |
001 |
2542612 |
||
42 |
22 |
ZQ32008 |
Hexagon nuts with flange |
002 |
2542612 |
||
83 |
23 |
ZQ1811430TF6 |
Hexagon flange bolts with teeth |
002 |
2542612 |
||
80 |
24 |
812W25444-6001 |
Engine with chassis electrical junction box |
001 |
2542612 |
||
84 |
25 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
002 |
2542612 |
||
43 |
26 |
202V27120-1082 |
SCR wiring harness |
001 |
2542612 |
||
58 |
27 |
WG1246120012 |
Cooling fluid rubber hose iii |
001 |
2542612 |
||
62 |
28 |
WG1034120077 |
SCR adblue |
001 |
2542612 |
||
64 |
28.1 |
WG1034120077+001/1 |
Urea solution for SCR system (10KG/ barrel) |
001 |
2542612 |
||
65 |
28.2 |
WG1034120077+002/1 |
Urea solution for SCR system (18KG/ barrel) |
001 |
2542612 |
||
66 |
28.3 |
WG1034120077+003/1 |
Urea solution for SCR system (200KG/ barrel) |
001 |
2542612 |
||
67 |
28.4 |
WG1034120077+004/1 |
Urea solution for SCR system (1000KG/ barrel) |
001 |
2542612 |
||
79 |
29 |
WG1034110110 |
OBD |
001 |
2542612 |
