2542125 AIR SCR
Unit2542125Detail
Unit2542125Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |

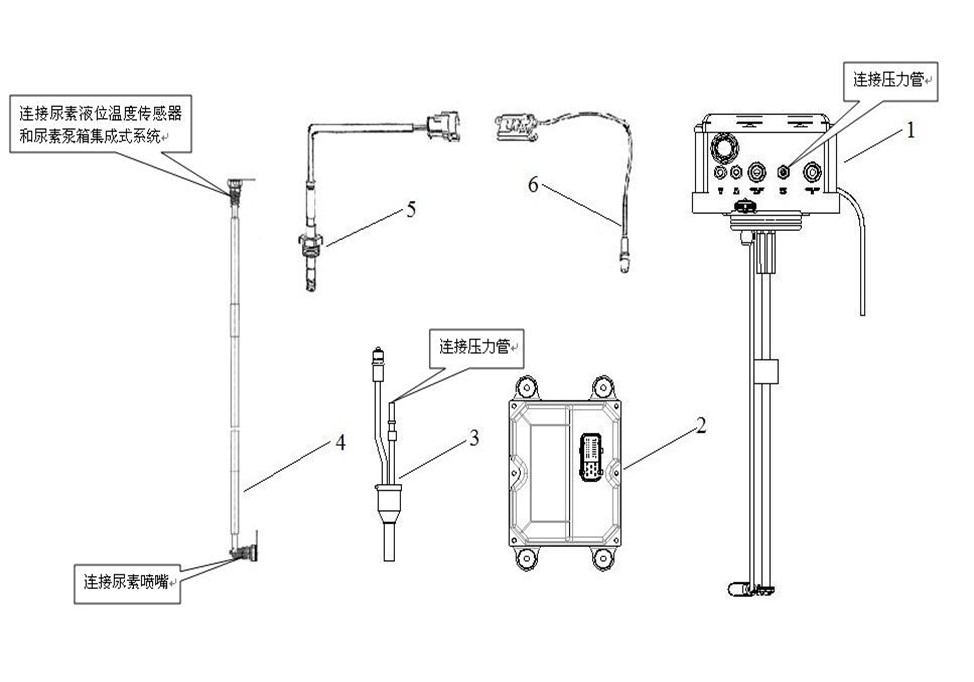

1 |
1 |
LG1034121181 |
Urea level box integrated temperature sensor and urea pump system (without heating) |
001 |
2542125 |
||
3 |
1.1 |
WG1034121181+001/1 |
Filter core (air assisted SCR) |
001 |
2542125 |
||
12 |
1.10 |
WG1034121181+010/1 |
External three-way valve (air assist) |
001 |
2542125 |
||
4 |
1.2 |
WG1034121181+002/1 |
Voltage stabilized solenoid valve (yangzhou university) |
001 |
2542125 |
||
5 |
1.3 |
WG1034121181+003/1 |
Pressure sensor (air assisted SCR) |
001 |
2542125 |
||
6 |
1.4 |
WG1034121181+004/1 |
Urea pressure sensor (air assisted SCR) |
001 |
2542125 |
||
7 |
1.5 |
WG1034121181+005/1 |
Urea solution pump |
001 |
2542125 |
||
8 |
1.6 |
WG1034121181+006/1 |
Three-way valve |
001 |
2542125 |
||
9 |
1.7 |
WG1034121181+007/1 |
Wiring harness in pump case(air assisted SCR) |
001 |
2542125 |
||
10 |
1.8 |
WG1034121181+008/1 |
Urea pump housing |
001 |
2542125 |
||
11 |
1.9 |
LG1034121181+009/1 |
Urea level sensor (air assisted SCR without heating) |
001 |
2542125 |
||
13 |
2 |
AZ1034121000 |
DCU(Air assist) |
001 |
2542125 |
||
21 |
3 |
WG1034121102 |
nozzle |
001 |
2542125 |
||
31 |
4 |
WG1034120907 |
pipe |
001 |
2542125 |
||
27 |
5 |
WG1034121033 |
Exhaust temperature sensor |
001 |
2542125 |
||
23 |
6 |
WG1034121032 |
NOx sensor |
001 |
2542125 |
||
25 |
7 |
ZQ1840825 |
Hexagon bolts with flange |
002 |
2542125 |
||
26 |
8 |
ZQ32008 |
Hexagon nuts with flange |
002 |
2542125 |
||
29 |
9 |
LG1034131102 |
SCR wiring(no heating) |
001 |
2542125 |
||
33 |
10 |
WG1034120077 |
SCR adblue |
001 |
2542125 |
||
35 |
10.1 |
WG1034120077+001/1 |
Urea solution for SCR system (10KG/ barrel) |
001 |
2542125 |
||
36 |
10.2 |
WG1034120077+002/1 |
Urea solution for SCR system (18KG/ barrel) |
001 |
2542125 |
||
37 |
10.3 |
WG1034120077+003/1 |
Urea solution for SCR system (200KG/ barrel) |
001 |
2542125 |
||
38 |
10.4 |
WG1034120077+004/1 |
Urea solution for SCR system (1000KG/ barrel) |
001 |
2542125 |
||
48 |
10.5 |
WG1034120077+005/4 |
Urea solution for SCR system (10KG/ barrel) |
001 |
2542125 |
||
49 |
10.6 |
WG1034120077+006/4 |
Urea solution for SCR system (1000KG/ barrel) |
001 |
2542125 |
||
50 |
11 |
WG1034110110 |
OBD |
001 |
2542125 |
