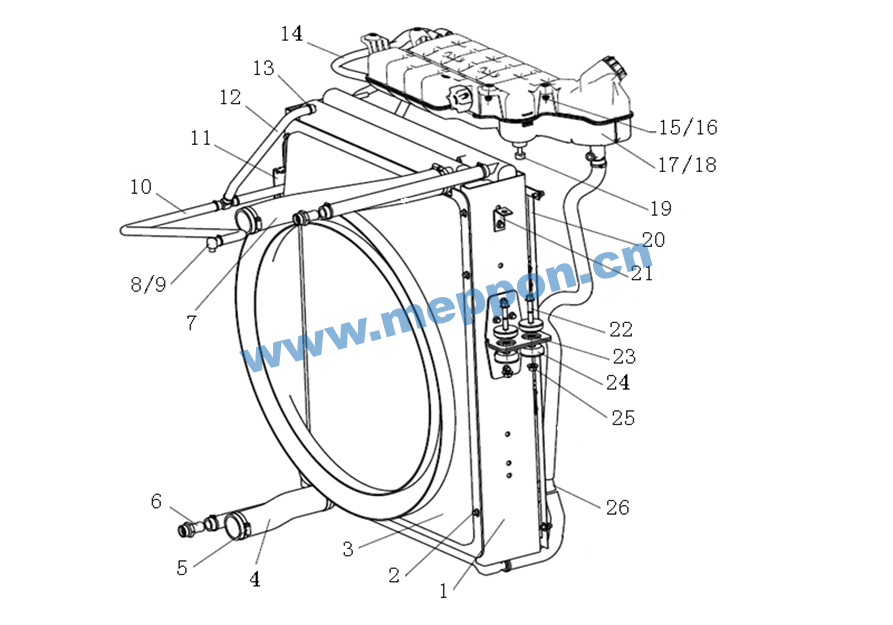

2270084 T5G Cooling System
Unit2270084Detail
|
Unit2270084Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
752W06100-0030 |
Cooling Module |
001 |
2270084 |
||
|
16 |
2 |
ZQ1840816 |
Hexagon bolts with flange |
006 |
2270084 |
||
|
14 |
3 |
WG9725531387 |
Fan shroud for T5G |
001 |
2270084 |
||
|
21 |
4 |
WG9725531381 |
hose |
001 |
2270084 |
||
|
23 |
5 |
190003989310 |
Hose clamp |
002 |
2270084 |
||
|
82 |
6 |
WG9725531653 |
fitting |
002 |
2270084 |
||
|
17 |
7 |
752W96301-0003 |
HOSE |
001 |
2270084 |
||
|
54 |
8 |
752W06101-0003 |
quick plug |
001 |
2270084 |
||
|
56 |
9 |
190003989300 |
Hose clamp |
002 |
2270084 |
||
|
48 |
10 |
752W96303-0001 |
Engine discouraged hose |
001 |
2270084 |
||
|
72 |
11 |
WG9725531306 |
bracket |
001 |
2270084 |
||
|
57 |
12 |
752W96303-0002 |
Radiator discouraged hose |
002 |
2270084 |
||
|
65 |
13 |
190003989336 |
Hose clamp |
002 |
2270084 |
||
|
41 |
14 |
WG9725531801 |
Hose |
001 |
2270084 |
||
|
39 |
15 |
Q40106 |
Washer |
004 |
2270084 |
||
|
40 |
16 |
ZQ32006 |
Hexagon nuts with flange |
004 |
2270084 |
||
|
29 |
17 |
752W06101-0001 |
Expansion tank |
001 |
2270084 |
||
|
34 |
18 |
WG9725536001 |
Heat insulation board |
001 |
2270084 |
||
|
37 |
19 |
752W06101-0002 |
sensor |
001 |
2270084 |
||
|
69 |
20 |
WG9725531385 |
Net |
001 |
2270084 |
||
|
80 |
21 |
WG9725512076 |
Bracket |
001 |
2270084 |
||
|
12 |
22 |
ZQ1841055TF6 |
Hexagon bolts with flange |
004 |
2270084 |
||
|
8 |
23 |
752W96000-0001 |
Sleeve |
004 |
2270084 |
||
|
3 |
24 |
752W96200-0002 |
Rubber damper |
008 |
2270084 |
||
|
13 |
25 |
ZQ32010T13F6 |
Hexagon nuts with flange |
004 |
2270084 |
||
|
24 |
26 |
WG9100530126 |
Model Y |
001 |
2270084 |
||
|
20 |
27 |
190003989310 |
Hose clamp |
002 |
2270084 |
||
|
27 |
28 |
WG9725531301 |
clamp |
002 |
2270084 |
||
|
45 |
29 |
WG9725531301 |
clamp |
003 |
2270084 |
||
|
47 |
30 |
190003989302 |
Hose clamp |
002 |
2270084 |
||
|
63 |
31 |
WG9125531432 |
pipe |
001 |
2270084 |
||
|
66 |
32 |
WG9725531305 |
bracket |
001 |
2270084 |
||
|
68 |
33 |
ZQ1840816 |
Hexagon bolts with flange |
004 |
2270084 |
||
|
71 |
34 |
ZQ1840616 |
Hexagon bolts with flange |
004 |
2270084 |
||
|
76 |
35 |
MQ6W21259-0023 |
THREADED PIN M6X20 M LACKNUT |
002 |
2270084 |
||
