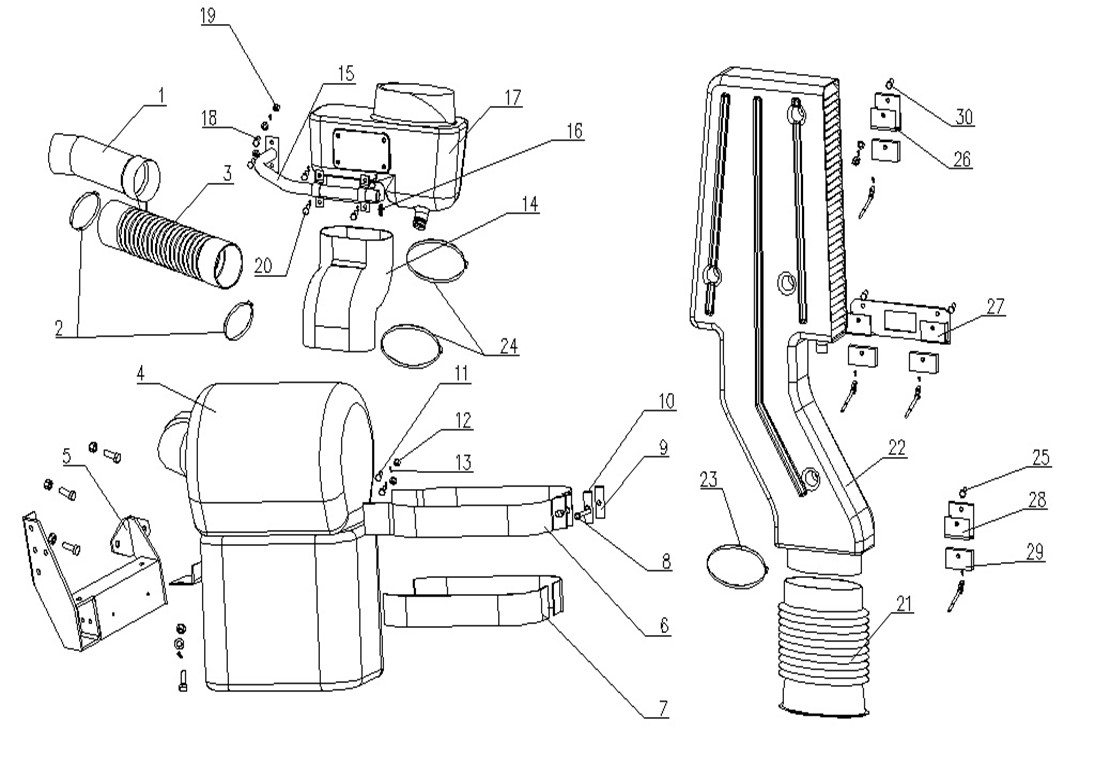

2191220 intake system
Unit2191220Detail
|
Unit2191220Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
WG9525190061 |
pipe |
001 |
2191220 |
||
|
5 |
2 |
190003989318 |
Hose clamp |
002 |
2191220 |
||
|
6 |
3 |
WG7017190037 |
Air outlet hose 110*600 |
001 |
2191220 |
||
|
26 |
4 |
WG9525190012 |
Air filter assembly |
001 |
2191220 |
||
|
12 |
5 |
WG9525190400 |
bracket |
001 |
2191220 |
||
|
28 |
6 |
WG9531190138 |
belt |
002 |
2191220 |
||
|
30 |
7 |
AZ9625190023 |
Rubber gasket |
001 |
2191220 |
||
|
31 |
8 |
WG9625190024 |
bolt |
001 |
2191220 |
||
|
33 |
9 |
AZ9112550228 |
Pin |
001 |
2191220 |
||
|
34 |
10 |
WG9625190026 |
Pin |
001 |
2191220 |
||
|
38 |
11 |
Q51016110 |
Pin |
002 |
2191220 |
||
|
39 |
12 |
Q40216 |
Washer |
002 |
2191220 |
||
|
40 |
13 |
Q5004025 |
Pin |
001 |
2191220 |
||
|
41 |
14 |
WG9525190017 |
gluey tube |
001 |
2191220 |
||
|
45 |
15 |
WG9525190029 |
bracket |
001 |
2191220 |
||
|
50 |
16 |
WG9525190063 |
plug |
001 |
2191220 |
||
|
52 |
17 |
WG9525190010 |
Small Air Tube |
001 |
2191220 |
||
|
43 |
18 |
ZQ1841030TF6 |
Hexagon bolts with flange |
002 |
2191220 |
||
|
44 |
19 |
ZQ32010T13F6 |
Hexagon nuts with flange |
006 |
2191220 |
||
|
55 |
20 |
ZQ1841016 |
Hexagon bolts with flange |
004 |
2191220 |
||
|
56 |
21 |
WG9525190009 |
Hose |
001 |
2191220 |
||
|
59 |
22 |
WG9525190008 |
Air Tube |
001 |
2191220 |
||
|
62 |
23 |
WG9516190022 |
Clamp |
001 |
2191220 |
||
|
64 |
24 |
Q675200 |
Clamp |
002 |
2191220 |
||
|
66 |
25 |
ZQ1841025TF6 |
Hexagon bolts with flange |
001 |
2191220 |
||
|
69 |
26 |
WG9525190115 |
bracket |
001 |
2191220 |
||
|
71 |
27 |
WG9525190128 |
bracket |
001 |
2191220 |
||
|
73 |
28 |
WG9525190129 |
bracket |
001 |
2191220 |
||
|
75 |
29 |
WG9525190124 |
rubber |
004 |
2191220 |
||
|
77 |
30 |
ZQ1840825 |
Hexagon bolts with flange |
003 |
2191220 |
||
