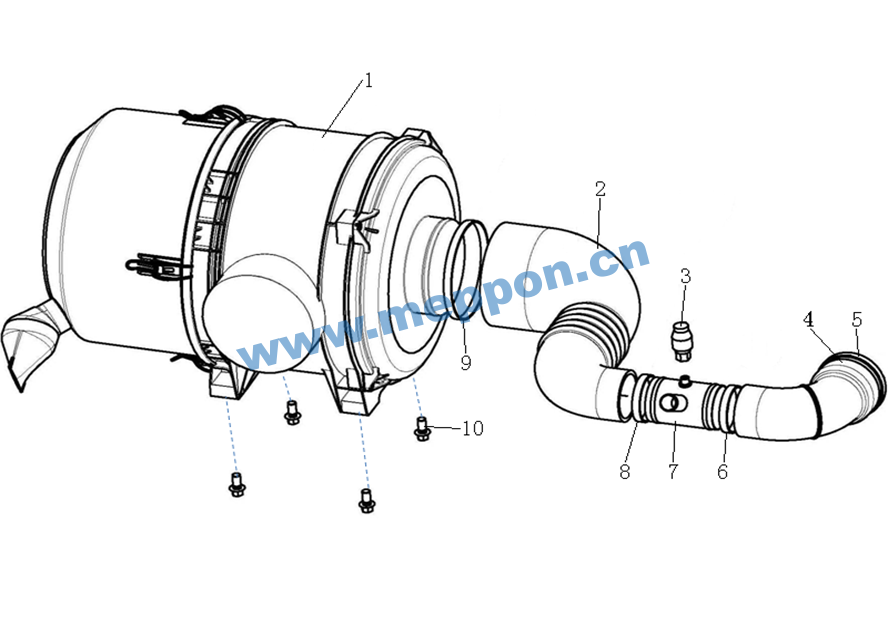

2191031 air intake system
Unit2191031Detail
|
Unit2191031Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
752W08400-6010 |
air cleaner |
001 |
2191031 |
||
|
2 |
1.1 |
752W08400-6010/1 |
air cleaner |
001 |
2191031 |
||
|
3 |
1.2 |
752W08400-6002/1 |
element |
001 |
2191031 |
||
|
4 |
1.3 |
752W08400-6003/1 |
element |
001 |
2191031 |
||
|
5 |
1.4 |
752W08400-6004/1 |
distributor |
001 |
2191031 |
||
|
6 |
1.5 |
752W08400-6011/1 |
cover |
001 |
2191031 |
||
|
8 |
2 |
WG8777190041 |
hose |
001 |
2191031 |
||
|
22 |
3 |
WG1200190040 |
Switch |
001 |
2191031 |
||
|
17 |
4 |
WG8777190042 |
hose |
002 |
2191031 |
||
|
20 |
5 |
190003989311 |
Hose clamp |
001 |
2191031 |
||
|
13 |
6 |
WG9420541005 |
Clamp |
002 |
2191031 |
||
|
11 |
7 |
WG8777190040 |
pipe |
001 |
2191031 |
||
|
19 |
8 |
190003989311 |
Hose clamp |
002 |
2191031 |
||
|
10 |
9 |
190003989316 |
Hose clamp |
002 |
2191031 |
||
|
21 |
10 |
ZQ1841020 |
Hexagon bolts with flange |
004 |
2191031 |
||
|
15 |
11 |
ZQ1841025 |
Hexagon bolts with flange |
002 |
2191031 |
||
|
16 |
12 |
ZQ32010 |
Hexagon nuts with flange |
002 |
2191031 |
||
