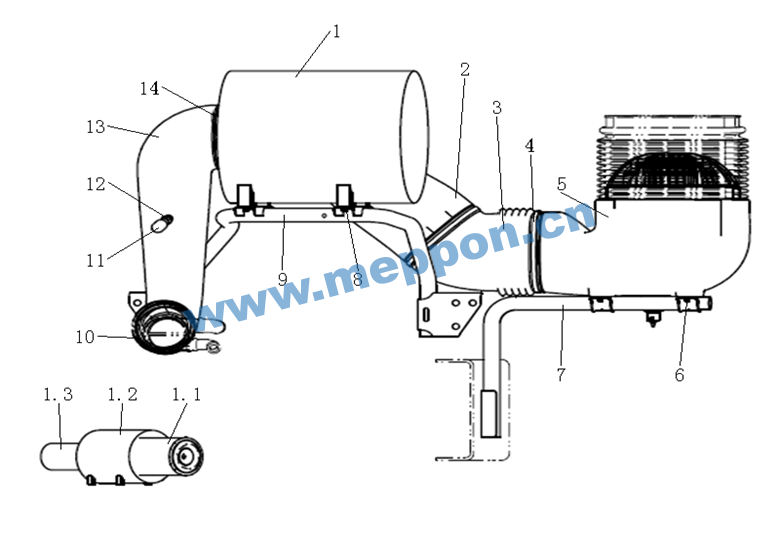

2190826 T7H intake system (chassis)
Unit2190826Detail
Unit2190826Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
2 |
1 |
WG9725190100 |
Air filter assembly |
001 |
2190826 |
||
5 |
1.1 |
WG9725190102/1 |
main filter assembly (mann – hummel) |
001 |
2190826 |
||
4 |
1.2 |
WG9725190101/1 |
Empty filter shell assembly (mann – hummel) |
001 |
2190826 |
||
6 |
1.3 |
WG9725190103/1 |
security filter assembly (mann – hummel) |
001 |
2190826 |
||
23 |
2 |
WG9925190082 |
Intake hose |
001 |
2190826 |
||
25 |
3 |
WG9925190089 |
Bellows |
001 |
2190826 |
||
29 |
4 |
AZ9003980026 |
Hose clamp |
003 |
2190826 |
||
27 |
5 |
WG9925190086 |
Intake duct |
001 |
2190826 |
||
34 |
6 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
2190826 |
||
39 |
7 |
WG9925190127 |
Bracket assembly |
001 |
2190826 |
||
13 |
8 |
ZQ1841030 |
Hexagon bolts with flange |
004 |
2190826 |
||
7 |
9 |
WG9925190116 |
Bracket assembly |
001 |
2190826 |
||
38 |
10 |
190003989316 |
Hose clamp |
001 |
2190826 |
||
22 |
11 |
WG9100770028 |
Cover |
001 |
2190826 |
||
18 |
12 |
WG1200190040 |
Switch |
001 |
2190826 |
||
14 |
13 |
WG9925190081 |
Intake hose |
001 |
2190826 |
||
17 |
14 |
AZ9003980026 |
Hose clamp |
002 |
2190826 |
||
35 |
15 |
WG9725190905 |
Hose |
001 |
2190826 |
