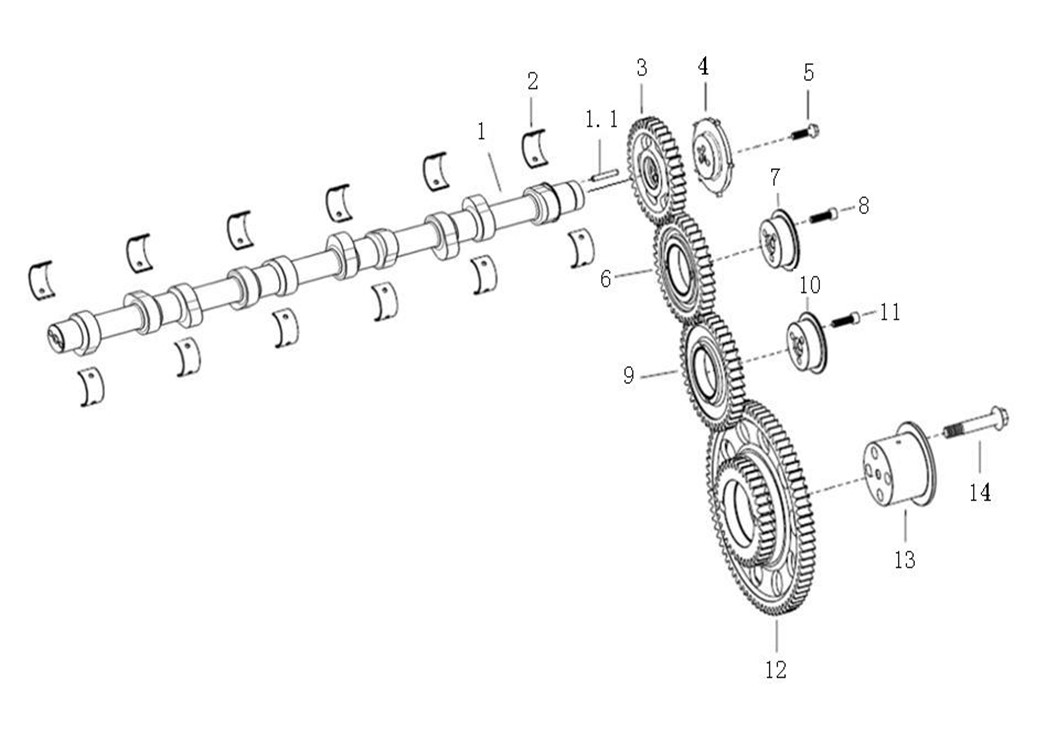

2170017 Camshaft With PTO
Unit2170017Detail
|
Unit2170017Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
092-04400-6051 |
Camshaft assembly |
001 |
2170017 |
||
|
46 |
1.1 |
MQ6-22022-0912 |
DOWEL PIN 6M6X20-ST50-2K |
001 |
2170017 |
||
|
11 |
2 |
200V04410-0177 |
BEARING SHELL |
012 |
2170017 |
||
|
15 |
3 |
200-04501-0191 |
Gear |
001 |
2170017 |
||
|
13 |
4 |
092V04501-0190 |
PULSE WHEEL |
001 |
2170017 |
||
|
17 |
5 |
MQ6-03216-8306 |
HEX BOLT M8X30-10.9-MAN183-B1 |
003 |
2170017 |
||
|
18 |
6 |
200-04505-5094 |
INTERMEDIATE GEAR |
001 |
2170017 |
||
|
23 |
7 |
200V04506-0077 |
GEAR STUD KLEIN |
001 |
2170017 |
||
|
25 |
8 |
MQ6-02191-0410 |
CYLINDER SCREW M8X30-10.9-MAN183-PHR |
003 |
2170017 |
||
|
26 |
9 |
200-04505-5093 |
INTERMEDIATE GEAR |
001 |
2170017 |
||
|
31 |
10 |
200V04506-0077 |
GEAR STUD KLEIN |
001 |
2170017 |
||
|
33 |
11 |
MQ6-02191-0410 |
CYLINDER SCREW M8X30-10.9-MAN183-PHR |
003 |
2170017 |
||
|
34 |
12 |
202-04505-5122 |
INTERMEDIATE GEAR |
001 |
2170017 |
||
|
41 |
13 |
200V04506-0078 |
GEAR STUD KLEIN |
001 |
2170017 |
||
|
43 |
14 |
MQ6-03216-8615 |
HEX BOLT M14X80-10.9-MAN183-B1 |
004 |
2170017 |
||
