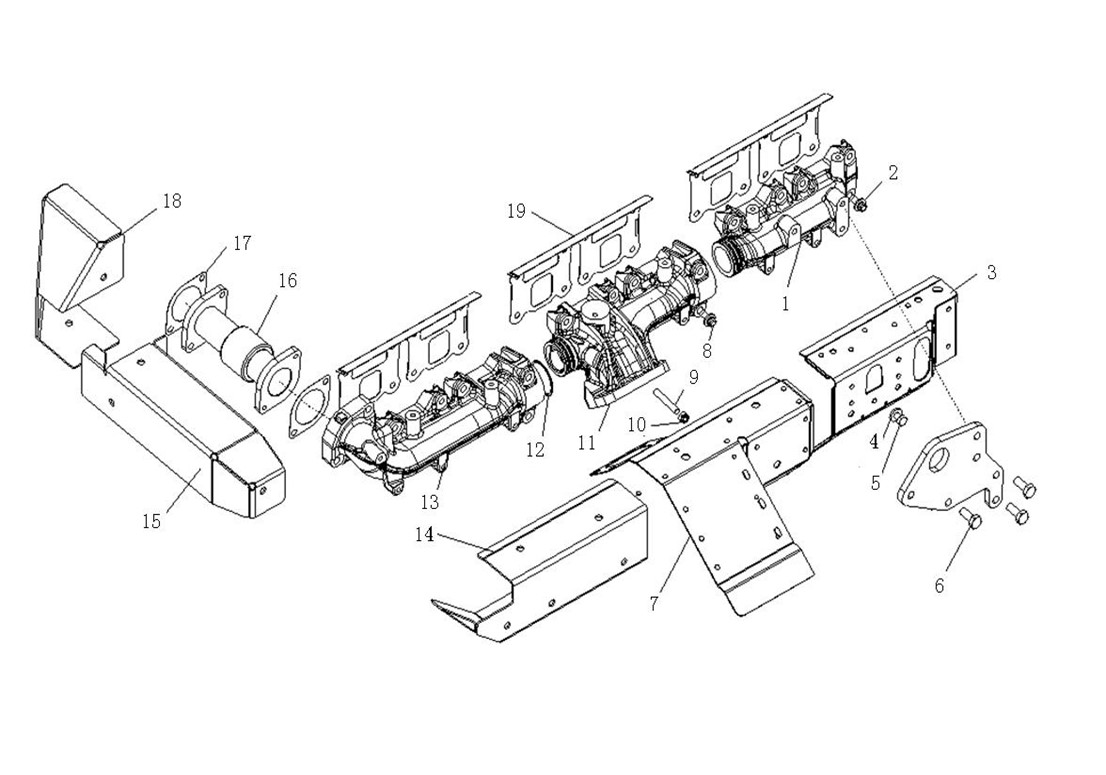

2160056 EXHAUST SYSTEM
Unit2160056Detail
|
Unit2160056Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
081V08102-0161 |
EXHAUST ELBOW ZYL 1-2 |
001 |
2160056 |
||
|
15 |
2 |
080V90490-0102 |
SCREW M8X40 WF |
018 |
2160056 |
||
|
21 |
3 |
082V08120-5423 |
HEAT PROTECTION PLATE ZYL 1-2 |
001 |
2160056 |
||
|
33 |
4 |
080V90710-0314 |
WASHER D9/19/3 |
017 |
2160056 |
||
|
31 |
5 |
MQ6-01289-0266 |
HEX BOLT M 8X16-8.8-C3J |
015 |
2160056 |
||
|
35 |
6 |
080V90490-0059 |
SCREW M8X30 WF |
002 |
2160056 |
||
|
23 |
7 |
082V08120-5424 |
HEAT PROTECTION PLATE ZYL 3-4 |
001 |
2160056 |
||
|
12 |
8 |
080V90490-0090 |
SCREW M8X80 HWF |
004 |
2160056 |
||
|
18 |
9 |
080V90210-0012 |
STUD M8X40 WF |
002 |
2160056 |
||
|
20 |
10 |
MQ6-11249-0017 |
HEXAGON NUT A M8-GA-C2J |
002 |
2160056 |
||
|
3 |
11 |
081V08102-0209 |
EXHAUST ELBOW ZYL 3-4 |
001 |
2160056 |
||
|
5 |
12 |
080V98701-0085 |
Seal ring |
016 |
2160056 |
||
|
7 |
13 |
080V08102-0343 |
EXHAUST ELBOW ZYL 5+6 |
001 |
2160056 |
||
|
25 |
14 |
082V08120-5282 |
HEAT PROTECTION PLATE ZYL 5-6 |
001 |
2160056 |
||
|
27 |
15 |
082V08120-5283 |
HEAT PROTECTION PLATE （EGR） |
001 |
2160056 |
||
|
40 |
16 |
082V08153-0059 |
EGR corrugated pipe |
001 |
2160056 |
||
|
42 |
17 |
080V08901-0241 |
GASKET F AGR |
002 |
2160056 |
||
|
29 |
18 |
082V08120-5284 |
HEAT PROTECTION PLATE （EGR） |
001 |
2160056 |
||
|
10 |
19 |
081V08901-0269 |
Gasket |
003 |
2160056 |
||
|
32 |
20 |
MQ6-01289-0272 |
HEX BOLT M8X20-8.8-C3J |
002 |
2160056 |
||
|
37 |
21 |
082V90490-0105 |
SCREW M8X25 WF |
002 |
2160056 |
||
