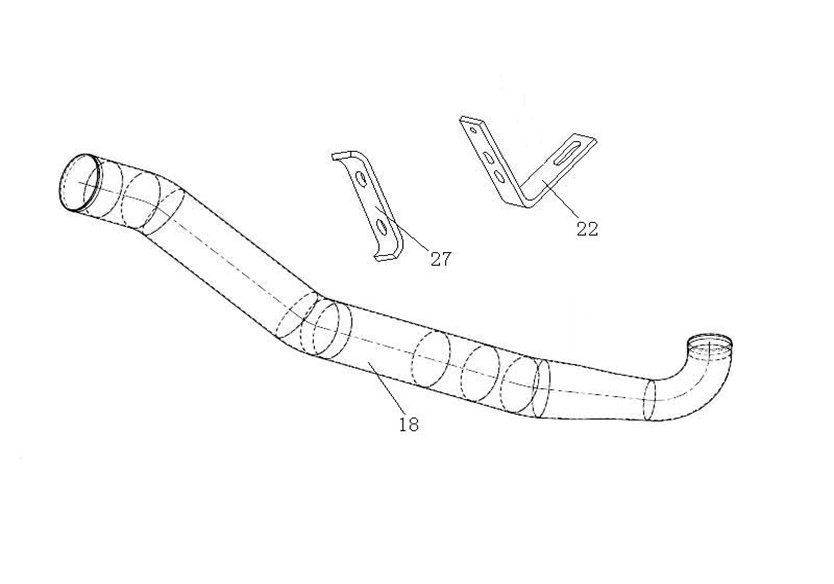

2110249 intake pipe and its support
Unit2110249Detail
|
Unit2110249Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
8 |
8 |
Q40312 |
Spring washer |
002 |
2110249 |
||
|
9 |
9 |
190003930261 |
Washer |
004 |
2110249 |
||
|
10 |
10 |
190003932023 |
Wave washer |
004 |
2110249 |
||
|
12 |
12 |
Q33208 |
Nut |
004 |
2110249 |
||
|
18 |
18 |
VG1034110013 |
Tube |
001 |
2110249 |
||
|
19 |
19 |
VG1034110013/1 |
Tube (0374). |
001 |
2110249 |
||
|
20 |
20 |
VG1034110013/2 |
Tube (E078) |
001 |
2110249 |
||
|
21 |
21 |
VG1034110013/3 |
Tube (E106) |
001 |
2110249 |
||
|
22 |
22 |
VG1034110012 |
Bracket |
002 |
2110249 |
||
|
23 |
23 |
VG1034110012/1 |
Bracket |
001 |
2110249 |
||
|
24 |
24 |
VG1034110012/2 |
Bracket |
001 |
2110249 |
||
|
25 |
25 |
VG1034110012/3 |
Bracket |
001 |
2110249 |
||
|
26 |
26 |
190003802424 |
Bolt |
004 |
2110249 |
||
|
27 |
27 |
VG1095110036 |
Block |
002 |
2110249 |
||
|
28 |
28 |
VG1095110036/1 |
Block (E106) |
002 |
2110249 |
||
|
29 |
29 |
VG1095110036/2 |
Block (E078) |
002 |
2110249 |
||
