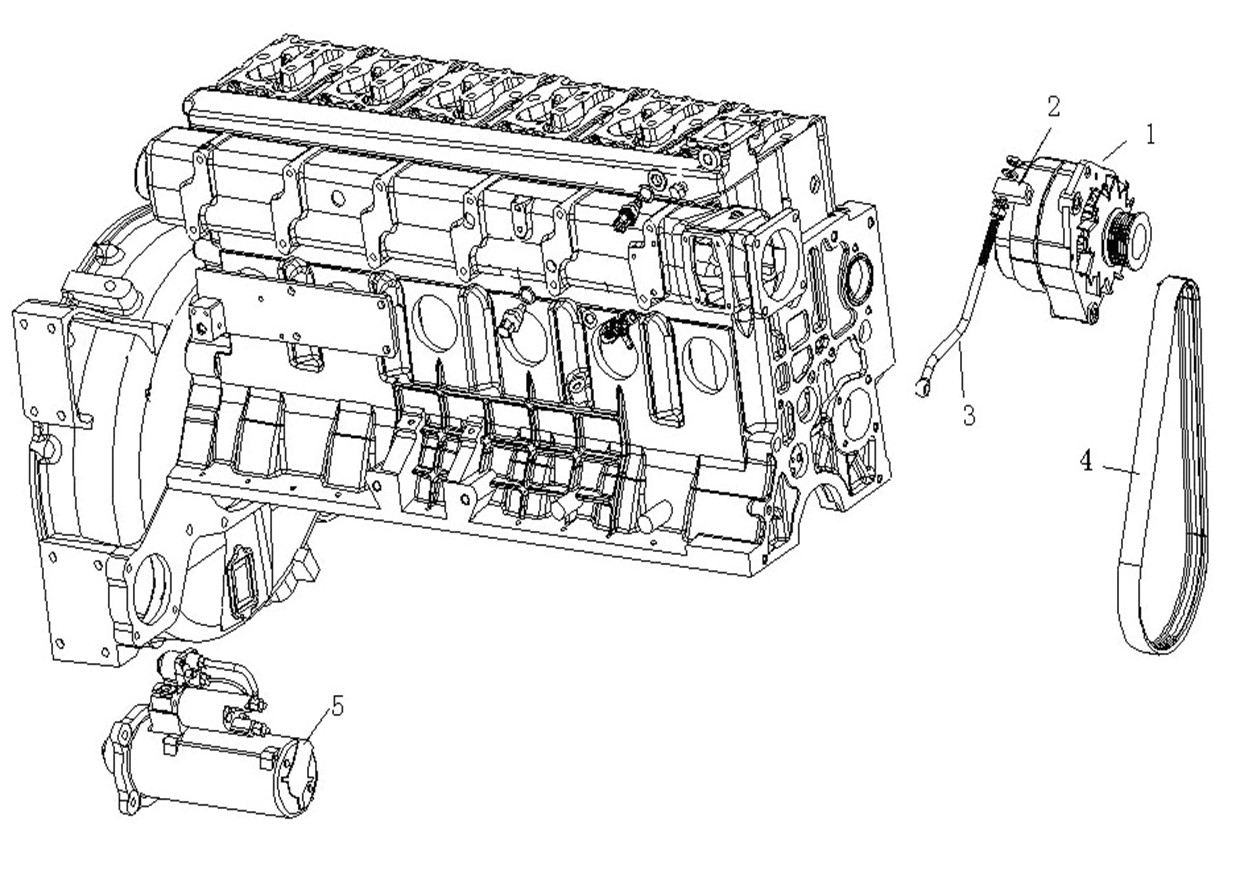

2090090 1540 w alternator and slow starter
Unit2090090Detail
|
Unit2090090Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
VG1560090011 |
Alternator-1540W |
001 |
2090090 |
||
|
18 |
2 |
VG1500090027 |
Block |
001 |
2090090 |
||
|
42 |
3 |
VG1500090040 |
Bolt |
001 |
2090090 |
||
|
49 |
4 |
VG2600020258 |
Belt |
001 |
2090090 |
||
|
30 |
5 |
VG1560090001 |
Starter |
001 |
2090090 |
||
|
9 |
6 |
VG2600090288 |
Block |
001 |
2090090 |
||
|
13 |
7 |
190003800568 |
Bolt |
001 |
2090090 |
||
|
14 |
8 |
190003932025 |
Washer |
001 |
2090090 |
||
|
22 |
9 |
190003935125 |
Washer |
002 |
2090090 |
||
|
23 |
10 |
190003871305 |
Nut |
001 |
2090090 |
||
|
24 |
11 |
190003888452 |
Nut |
001 |
2090090 |
||
|
25 |
12 |
VG1062060004 |
Stud |
001 |
2090090 |
||
|
27 |
13 |
190003932025 |
Washer |
001 |
2090090 |
||
|
28 |
14 |
190003802527 |
Bolt |
001 |
2090090 |
||
|
29 |
15 |
190003930271 |
Washer |
001 |
2090090 |
||
|
36 |
16 |
190003813532 |
Stud |
003 |
2090090 |
||
|
37 |
17 |
190003888452 |
Nut |
003 |
2090090 |
||
|
45 |
18 |
VG1500090041 |
Block |
001 |
2090090 |
||
