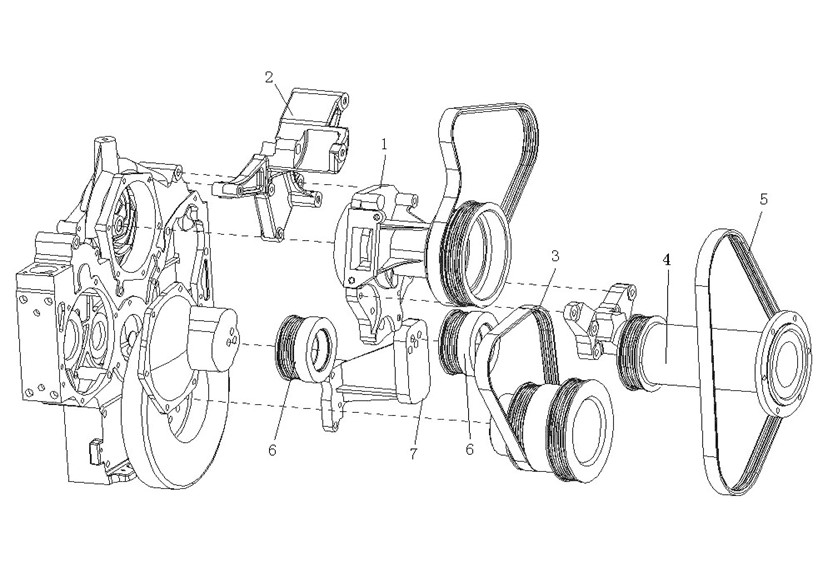

2060151 Water pump and fan
Unit2060151Detail
|
Unit2060151Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
160 |
1 |
VG1062060351 |
Water pump assembly (for prince EGR) |
001 |
2060151 |
||
|
63 |
2 |
VG1062130018 |
Bracket |
001 |
2060151 |
||
|
183 |
3 |
VG1062060035 |
Belt |
001 |
2060151 |
||
|
144 |
4 |
VG1062060130A |
Bracket assembly |
001 |
2060151 |
||
|
186 |
5 |
VG1062060045 |
Belt |
001 |
2060151 |
||
|
168 |
6 |
VG1062060113 |
Tensioner |
002 |
2060151 |
||
|
170 |
7 |
VG1062060200 |
Water pump tensioning wheel bracket |
001 |
2060151 |
||
|
1 |
8 |
190003802424 |
Bolt |
006 |
2060151 |
||
|
2 |
9 |
190003888451 |
Nut |
006 |
2060151 |
||
|
42 |
10 |
VG1500060108 |
Gasket |
001 |
2060151 |
||
|
46 |
11 |
190003800467 |
Bolt |
001 |
2060151 |
||
|
47 |
12 |
190003802424 |
Bolt |
001 |
2060151 |
||
|
48 |
13 |
190003932023 |
Wave washer |
002 |
2060151 |
||
|
49 |
14 |
VG61000060276 |
Hose |
001 |
2060151 |
||
|
55 |
15 |
190003800564 |
Bolt |
001 |
2060151 |
||
|
56 |
16 |
190003989308 |
Hose clamp |
002 |
2060151 |
||
|
57 |
17 |
190003802432 |
Bolt |
001 |
2060151 |
||
|
58 |
18 |
190014040007 |
Washer |
001 |
2060151 |
||
|
194 |
19 |
VG1560060023 |
Nozzle |
001 |
2060151 |
||
|
66 |
20 |
190003800575 |
Bolt |
001 |
2060151 |
||
|
67 |
21 |
190014070002 |
Washer |
001 |
2060151 |
||
|
69 |
22 |
190003800568 |
Bolt |
001 |
2060151 |
||
|
70 |
23 |
VG14060024 |
Gasket |
001 |
2060151 |
||
|
74 |
24 |
190003930271 |
Washer |
002 |
2060151 |
||
|
75 |
25 |
190003802532 |
Bolt |
001 |
2060151 |
||
|
90 |
26 |
Q218B1625 |
Screw |
001 |
2060151 |
||
|
126 |
27 |
190003800578 |
Bolt |
002 |
2060151 |
||
|
127 |
28 |
190003862427 |
Screw |
001 |
2060151 |
||
|
128 |
29 |
Q1200880F3 |
Stud |
002 |
2060151 |
||
|
129 |
30 |
Q150B10140 |
Bolt |
001 |
2060151 |
||
|
167 |
31 |
Q150B1055TF2 |
Bolt |
002 |
2060151 |
||
|
172 |
32 |
Q5211014 |
Pin |
002 |
2060151 |
||
|
173 |
33 |
VG1062060201 |
Water pump return pipe |
001 |
2060151 |
||
|
199 |
34 |
VG1095060386 |
return pipe bracket |
001 |
2060151 |
||
|
178 |
35 |
VG1062060203 |
Hose |
001 |
2060151 |
||
|
180 |
36 |
Q150B1016 |
Bolt |
001 |
2060151 |
||
|
181 |
37 |
Q41810 |
Wave washer |
001 |
2060151 |
||
|
182 |
38 |
Q67670 |
Hose clamp |
002 |
2060151 |
||
