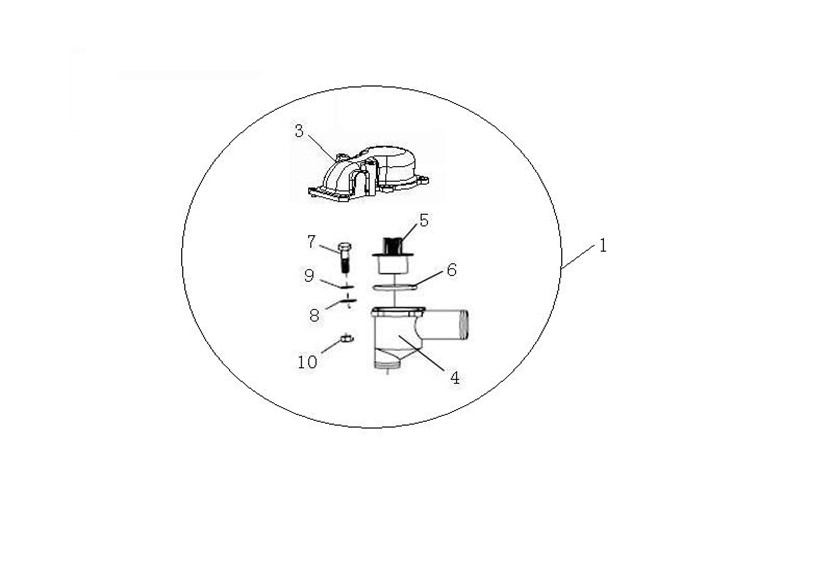

2060135 thermostat assembly
Unit2060135Detail
|
Unit2060135Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
VG1047060005 |
Temperature regulator assembly |
001 |
2060135 |
||
|
2 |
2 |
VG1047060005/1 |
Temperature regulator assembly |
001 |
2060135 |
||
|
3 |
3 |
VG1500040105 |
Tube |
001 |
2060135 |
||
|
4 |
4 |
VG1500061203 |
Housing |
001 |
2060135 |
||
|
5 |
5 |
VG1047060003 |
Temperature regulator |
001 |
2060135 |
||
|
6 |
6 |
VG1047060004 |
Gasket |
001 |
2060135 |
||
|
7 |
7 |
Q150B0830 |
Bolt |
004 |
2060135 |
||
|
8 |
8 |
Q40108 |
Washer |
004 |
2060135 |
||
|
9 |
9 |
Q40308 |
Spring washer |
004 |
2060135 |
||
|
10 |
10 |
Q340B08 |
Nut |
004 |
2060135 |
||
|
11 |
11 |
VG1047060005/2 |
Temperature regulator assembly |
001 |
2060135 |
||
|
12 |
12 |
VG1500040105 |
Tube |
001 |
2060135 |
||
|
13 |
13 |
VG1095061204 |
Housing |
001 |
2060135 |
||
|
14 |
14 |
VG1047060013 |
Temperature regulator |
001 |
2060135 |
||
|
15 |
15 |
VG1047060014 |
Gasket |
001 |
2060135 |
||
|
16 |
16 |
Q150B0830 |
Bolt |
004 |
2060135 |
||
|
17 |
17 |
Q40108 |
Washer |
004 |
2060135 |
||
|
18 |
18 |
Q40308 |
Spring washer |
004 |
2060135 |
||
|
19 |
19 |
Q340B08 |
Nut |
004 |
2060135 |
||
