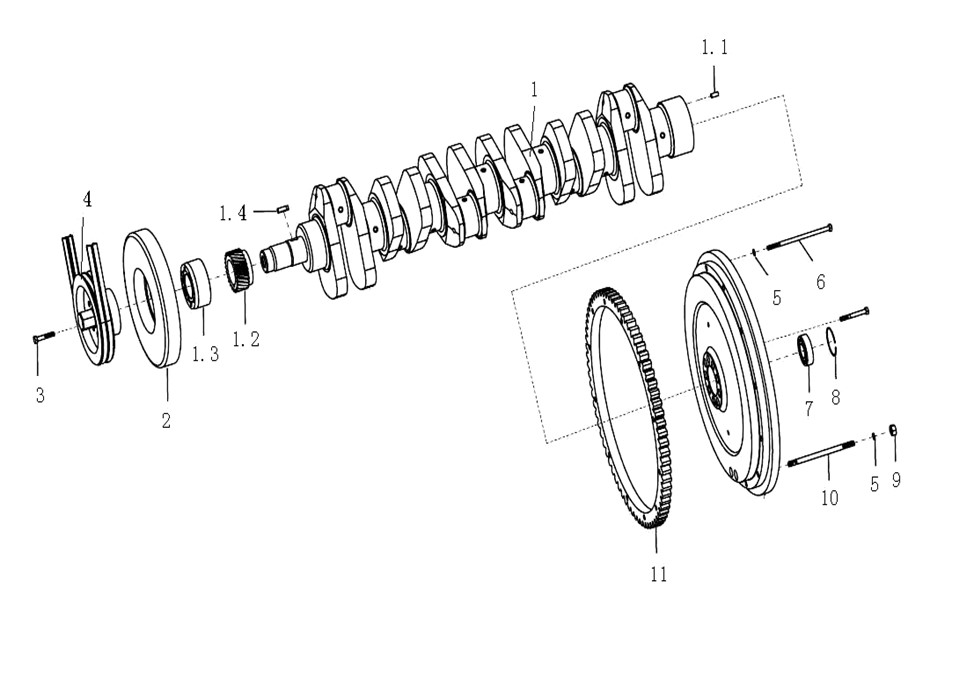

2020051 The crankshaft and the flywheel
Unit2020051Detail
|
Unit2020051Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
161560020029 |
Crankshaft assembly |
001 |
2020051 |
||
|
40 |
1.1 |
190003901418 |
Pin |
001 |
2020051 |
||
|
17 |
1.2 |
VG14020038 |
Crankshaft gear |
001 |
2020051 |
||
|
15 |
1.3 |
VG1500020070 |
Flange |
001 |
2020051 |
||
|
22 |
1.4 |
Q5510828 |
Key |
001 |
2020051 |
||
|
122 |
1.5 |
VG2600020311 |
Plug |
006 |
2020051 |
||
|
117 |
2 |
VG1540020003 |
Shock absorber |
001 |
2020051 |
||
|
23 |
3 |
190003802558 |
Bolt |
008 |
2020051 |
||
|
87 |
4 |
VG1560020020 |
Belt pulley |
001 |
2020051 |
||
|
33 |
5 |
190003932024 |
Wave washer |
012 |
2020051 |
||
|
31 |
6 |
190003800579 |
Bolt |
10 |
2020051 |
||
|
35 |
7 |
190003311416 |
Ball bearing |
001 |
2020051 |
||
|
36 |
8 |
190003934310 |
Circlip |
001 |
2020051 |
||
|
32 |
9 |
190003871305 |
Nut |
002 |
2020051 |
||
|
30 |
10 |
190003813571 |
Stud |
002 |
2020051 |
||
|
28 |
11 |
VG2600020208 |
Flywheel ring gear |
001 |
2020051 |
||
