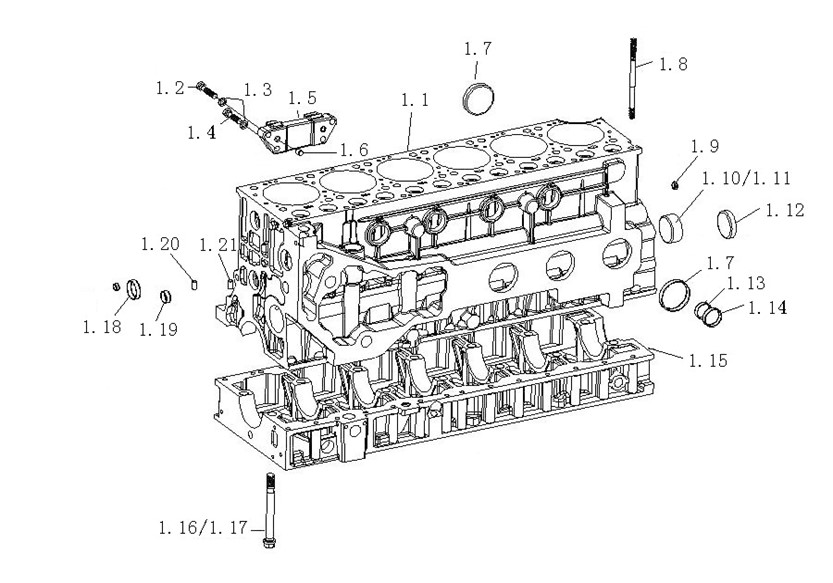

2010180 Cylinder block assembly
Unit2010180Detail
|
Unit2010180Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
110 |
1 |
AZ1096010198 |
Cylinder block assembly |
001 |
2010180 |
||
|
113 |
1.1 |
AZ1096010134A/1 |
Cylinder block |
001 |
2010180 |
||
|
134 |
1.10 |
VG1560010029 |
Bushing |
005 |
2010180 |
||
|
135 |
1.11 |
VG1096010010A |
Bushing |
001 |
2010180 |
||
|
142 |
1.12 |
190003989288 |
Plug |
001 |
2010180 |
||
|
125 |
1.13 |
190003989289 |
Plug |
004 |
2010180 |
||
|
141 |
1.14 |
190003989215 |
Plug |
004 |
2010180 |
||
|
117 |
1.15 |
161500010366G/1 |
Crankcase |
001 |
2010180 |
||
|
143 |
1.16 |
VG14010114 |
Bolt |
013 |
2010180 |
||
|
144 |
1.17 |
VG14010217 |
Bolt |
001 |
2010180 |
||
|
126 |
1.18 |
190003982121 |
Plug |
004 |
2010180 |
||
|
140 |
1.19 |
190003989204 |
Plug |
001 |
2010180 |
||
|
128 |
1.20 |
190003901604A |
Pin |
002 |
2010180 |
||
|
132 |
1.2 |
190011350045 |
Bolt |
002 |
2010180 |
||
|
129 |
1.21 |
Q5211220 |
Pin |
001 |
2010180 |
||
|
137 |
1.22 |
VG2600010990 |
Bushing |
001 |
2010180 |
||
|
146 |
1.23 |
190003802493 |
Bolt |
027 |
2010180 |
||
|
147 |
1.24 |
VG188250083 |
Washer |
027 |
2010180 |
||
|
133 |
1.3 |
190003931142 |
Spring washer |
004 |
2010180 |
||
|
131 |
1.4 |
190003802650 |
Bolt |
002 |
2010180 |
||
|
124 |
1.5 |
VG1540010019 |
Bracket |
001 |
2010180 |
||
|
130 |
1.6 |
Q5211216 |
Pin |
002 |
2010180 |
||
|
127 |
1.7 |
190003989210 |
Plug |
009 |
2010180 |
||
|
145 |
1.8 |
VG1500010185 |
Bolt |
021 |
2010180 |
||
|
136 |
1.9 |
190003989480 |
Plug |
001 |
2010180 |
||
