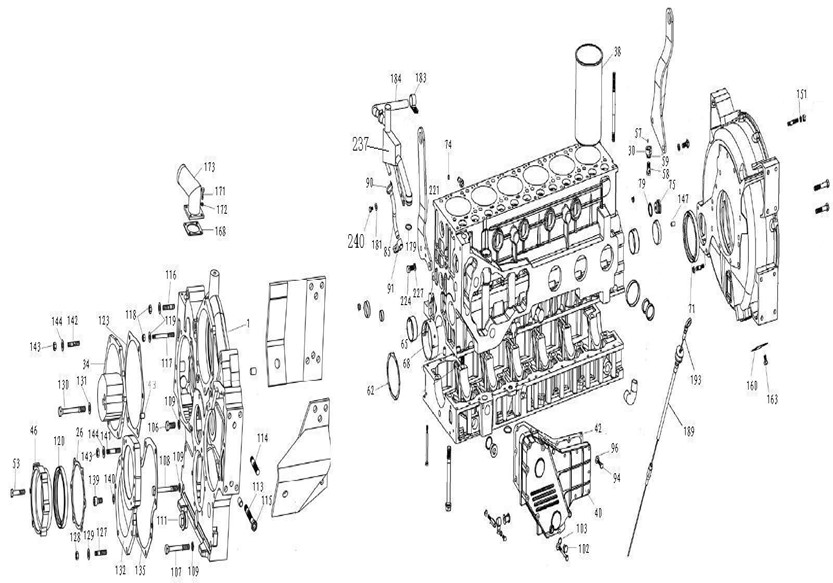

2010105 Cylinder block
Unit2010105Detail
|
Unit2010105Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
61557010008 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
2 |
2 |
61557010008/1 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
3 |
3 |
61557010008R |
001 |
2010105 |
|||
|
4 |
4 |
61557010008R/1 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
5 |
5 |
61557010008R/2 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
6 |
6 |
61557010008R/3 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
7 |
7 |
61557010008R/4 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
8 |
8 |
61557010008R/5 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
9 |
9 |
61557010008/2 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
10 |
10 |
61557010008R |
001 |
2010105 |
|||
|
11 |
11 |
61557010008R/1 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
12 |
12 |
61557010008R/2 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
13 |
13 |
61557010008R/3 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
14 |
14 |
61557010008R/4 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
15 |
15 |
61557010008R/5 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
16 |
16 |
61557010008/3 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
17 |
17 |
61557010008R |
001 |
2010105 |
|||
|
18 |
18 |
61557010008R/1 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
19 |
19 |
61557010008R/2 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
20 |
20 |
61557010008R/3 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
21 |
21 |
61557010008R/4 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
22 |
22 |
61557010008R/5 |
Gear case of dual-cylinder air compressor |
001 |
2010105 |
||
|
23 |
23 |
VG2600070097 |
Hose |
001 |
2010105 |
||
|
24 |
24 |
VG2600070097/1 |
Oil return bend (E078) |
001 |
2010105 |
||
|
25 |
25 |
VG2600070097/2 |
Oil return bend (E106) |
001 |
2010105 |
||
|
26 |
26 |
VG2600010934 |
Gasket |
001 |
2010105 |
||
|
27 |
27 |
VG2600010934/1 |
Gasket |
001 |
2010105 |
||
|
28 |
28 |
VG2600010934/2 |
Gasket |
001 |
2010105 |
||
|
29 |
29 |
VG2600010934/3 |
Gasket |
001 |
2010105 |
||
|
30 |
30 |
VG1560019090 |
Oil nozzle assembly |
006 |
2010105 |
||
|
31 |
31 |
VG1560019090/1 |
Oil nozzle assembly |
001 |
2010105 |
||
|
32 |
32 |
VG1560019090/2 |
Oil nozzle assembly |
001 |
2010105 |
||
|
33 |
33 |
VG1560019090/3 |
Oil nozzle assembly |
001 |
2010105 |
||
|
34 |
34 |
VG2600010830 |
Cover |
001 |
2010105 |
||
|
35 |
35 |
VG2600010830/1 |
Cover |
001 |
2010105 |
||
|
36 |
36 |
VG2600010830/2 |
Cover |
001 |
2010105 |
||
|
37 |
37 |
VG2600010830/3 |
Cover |
001 |
2010105 |
||
|
38 |
38 |
VG1540010006 |
Cylinder liner |
006 |
2010105 |
||
|
39 |
39 |
VG1540010006/1 |
Cylinder liner |
001 |
2010105 |
||
|
40 |
40 |
VG1557010014 |
Cover |
001 |
2010105 |
||
|
41 |
41 |
VG1557010014/1 |
Oil cooler cover (E050) |
001 |
2010105 |
||
|
42 |
42 |
VG1540010015A |
Gasket |
001 |
2010105 |
||
|
43 |
43 |
VG1540010015A/1 |
Gasket |
001 |
2010105 |
||
|
44 |
44 |
VG1540010015A/2 |
Gasket |
001 |
2010105 |
||
|
45 |
45 |
VG1540010015A/3 |
Gasket |
001 |
2010105 |
||
|
46 |
46 |
VG2600010928 |
Base |
001 |
2010105 |
||
|
47 |
47 |
VG2600010928/1 |
Base |
001 |
2010105 |
||
|
48 |
48 |
VG2600010928/2 |
Base |
001 |
2010105 |
||
|
49 |
49 |
VG2600010928/3 |
Base |
001 |
2010105 |
||
|
50 |
50 |
VG61000010134 |
Gasket |
001 |
2010105 |
||
|
51 |
51 |
VG61000010134/1 |
Gasket |
001 |
2010105 |
||
|
52 |
52 |
VG61000010134/2 |
Gasket |
001 |
2010105 |
||
|
53 |
53 |
190011260039 |
Bolt |
006 |
2010105 |
||
|
54 |
54 |
VG9003080001 |
Gasket |
006 |
2010105 |
||
|
55 |
55 |
VG9003080001/1 |
Gasket |
001 |
2010105 |
||
|
56 |
56 |
VG9003080001/2 |
Gasket |
001 |
2010105 |
||
|
57 |
57 |
190003909603 |
Pin |
006 |
2010105 |
||
|
58 |
58 |
190003962621 |
Hollow bolt |
006 |
2010105 |
||
|
59 |
59 |
VG9003080005 |
Gasket |
006 |
2010105 |
||
|
60 |
60 |
VG9003080005/1 |
Gasket |
001 |
2010105 |
||
|
61 |
61 |
VG9003080005/2 |
Gasket |
001 |
2010105 |
||
|
62 |
62 |
VG1500010125 |
Shim assembly |
002 |
2010105 |
||
|
63 |
63 |
VG1500010125/1 |
Shim assembly |
001 |
2010105 |
||
|
64 |
64 |
VG1500010125/2 |
Shim assembly |
001 |
2010105 |
||
|
65 |
65 |
VG1540010021 |
Bushing |
007 |
2010105 |
||
|
66 |
66 |
VG1540010021/1 |
Bushing |
001 |
2010105 |
||
|
67 |
67 |
VG1540010021/3 |
Bushing |
001 |
2010105 |
||
|
68 |
68 |
VG1540010022 |
Bushing |
007 |
2010105 |
||
|
69 |
69 |
VG1540010022/1 |
Bushing |
001 |
2010105 |
||
|
70 |
70 |
VG1540010022/3 |
Bushing |
001 |
2010105 |
||
|
71 |
71 |
VG1047010050 |
Oil seal |
001 |
2010105 |
||
|
72 |
72 |
VG1047010050/1 |
Oil seal |
001 |
2010105 |
||
|
73 |
73 |
190003901604 |
Pin |
006 |
2010105 |
||
|
74 |
74 |
190003909626 |
Pin |
006 |
2010105 |
||
|
75 |
75 |
VG1460070011 |
Plug |
001 |
2010105 |
||
|
76 |
76 |
VG1460070011/1 |
Plug |
001 |
2010105 |
||
|
77 |
77 |
VG1460070011/2 |
Plug |
001 |
2010105 |
||
|
78 |
78 |
VG1460070011/3 |
Plug |
001 |
2010105 |
||
|
79 |
79 |
VG2600010735 |
Gasket |
001 |
2010105 |
||
|
80 |
80 |
VG2600010735/1 |
Gasket |
001 |
2010105 |
||
|
81 |
81 |
VG2600010735/2 |
Gasket |
001 |
2010105 |
||
|
82 |
82 |
VG407010046 |
Gasket |
001 |
2010105 |
||
|
83 |
83 |
VG407010046/1 |
Gasket |
001 |
2010105 |
||
|
84 |
84 |
VG407010046/2 |
Gasket |
001 |
2010105 |
||
|
85 |
85 |
VG2600011106 |
Hose |
001 |
2010105 |
||
|
86 |
86 |
VG2600011106/1 |
Hose |
001 |
2010105 |
||
|
87 |
87 |
VG2600011106/2 |
Hose |
001 |
2010105 |
||
|
88 |
88 |
VG2600011106/3 |
Hose |
001 |
2010105 |
||
|
90 |
90 |
190003989336 |
Hose clamp |
002 |
2010105 |
||
|
91 |
91 |
VG609E110049 |
Plate |
001 |
2010105 |
||
|
92 |
92 |
VG609E110049/1 |
Plate |
001 |
2010105 |
||
|
93 |
93 |
VG609E110049/2 |
Plate |
001 |
2010105 |
||
|
94 |
94 |
190003802437 |
Bolt |
005 |
2010105 |
||
|
95 |
95 |
Q150B0875 |
Bolt |
006 |
2010105 |
||
|
96 |
96 |
190003932023 |
Wave washer |
014 |
2010105 |
||
|
97 |
97 |
190003800465 |
Bolt |
002 |
2010105 |
||
|
98 |
98 |
190013050011 |
Screw |
002 |
2010105 |
||
|
99 |
99 |
VG188250083 |
Washer |
001 |
2010105 |
||
|
100 |
100 |
VG188250083/1 |
Washer |
001 |
2010105 |
||
|
101 |
101 |
VG188250083/2 |
Washer |
001 |
2010105 |
||
|
102 |
102 |
190003962020 |
Plug |
001 |
2010105 |
||
|
103 |
103 |
VG9003080005 |
Gasket |
001 |
2010105 |
||
|
104 |
104 |
VG9003080005/1 |
Gasket |
001 |
2010105 |
||
|
105 |
105 |
VG9003080005/2 |
Gasket |
001 |
2010105 |
||
|
106 |
106 |
190003802523 |
Bolt |
003 |
2010105 |
||
|
107 |
107 |
190003802561 |
Bolt |
006 |
2010105 |
||
|
108 |
108 |
190003800571 |
Bolt |
001 |
2010105 |
||
|
109 |
109 |
190003931122 |
Spring washer |
010 |
2010105 |
||
|
110 |
110 |
190003930271 |
Washer |
002 |
2010105 |
||
|
111 |
111 |
190003962051 |
Plug |
001 |
2010105 |
||
|
112 |
112 |
190003900085 |
Pin |
004 |
2010105 |
||
|
113 |
113 |
190003813628 |
Stud |
006 |
2010105 |
||
|
114 |
114 |
190003813638 |
Stud |
002 |
2010105 |
||
|
115 |
115 |
190003888453 |
Nut |
008 |
2010105 |
||
|
116 |
116 |
190003813429 |
Stud |
004 |
2010105 |
||
|
117 |
117 |
190003813467 |
Stud |
002 |
2010105 |
||
|
118 |
118 |
190003871252 |
Nut |
006 |
2010105 |
||
|
119 |
119 |
190003932023 |
Wave washer |
006 |
2010105 |
||
|
120 |
120 |
VG1047010038 |
Oil seal |
001 |
2010105 |
||
|
121 |
121 |
VG1047010038/1 |
Oil seal |
001 |
2010105 |
||
|
122 |
122 |
VG1047010038/2 |
Oil seal |
001 |
2010105 |
||
|
123 |
123 |
VG14010040 |
Gasket |
001 |
2010105 |
||
|
124 |
124 |
VG14010040/1 |
Gasket |
001 |
2010105 |
||
|
125 |
125 |
VG14010040/2 |
Gasket |
001 |
2010105 |
||
|
126 |
126 |
VG14010040/3 |
Gasket |
001 |
2010105 |
||
|
127 |
127 |
190003813429 |
Stud |
005 |
2010105 |
||
|
128 |
128 |
190003871252 |
Nut |
005 |
2010105 |
||
|
129 |
129 |
190003932023 |
Wave washer |
005 |
2010105 |
||
|
130 |
130 |
190003802576 |
Bolt |
001 |
2010105 |
||
|
131 |
131 |
190003932024 |
Wave washer |
001 |
2010105 |
||
|
132 |
132 |
VG1500010008A |
Cover |
001 |
2010105 |
||
|
133 |
133 |
VG1500010008A/1 |
Cover |
001 |
2010105 |
||
|
134 |
134 |
VG1500010008A/3 |
Cover |
001 |
2010105 |
||
|
135 |
135 |
VG14010070 |
Gasket |
001 |
2010105 |
||
|
136 |
136 |
VG14010070/1 |
Gasket |
001 |
2010105 |
||
|
137 |
137 |
VG14010070/2 |
Gasket |
001 |
2010105 |
||
|
138 |
138 |
VG14010070/3 |
Gasket |
001 |
2010105 |
||
|
139 |
139 |
190003862524 |
Screw |
002 |
2010105 |
||
|
140 |
140 |
190003932025 |
Washer |
002 |
2010105 |
||
|
141 |
141 |
190003813443 |
Stud |
001 |
2010105 |
||
|
142 |
142 |
190003813429 |
Stud |
005 |
2010105 |
||
|
143 |
143 |
190003871252 |
Nut |
006 |
2010105 |
||
|
144 |
144 |
190003932023 |
Wave washer |
006 |
2010105 |
||
|
145 |
145 |
190003901507 |
Pin |
004 |
2010105 |
||
|
146 |
146 |
161500010200 |
001 |
2010105 |
|||
|
147 |
147 |
190003901604 |
Pin |
002 |
2010105 |
||
|
151 |
151 |
190003931122 |
Spring washer |
012 |
2010105 |
||
|
155 |
155 |
VG29135 |
Cover |
001 |
2010105 |
||
|
156 |
156 |
VG29135/1 |
Cover |
001 |
2010105 |
||
|
157 |
157 |
VG29135/2 |
Cover |
001 |
2010105 |
||
|
158 |
158 |
190003802419 |
Bolt |
002 |
2010105 |
||
|
159 |
159 |
190003932023 |
Wave washer |
002 |
2010105 |
||
|
160 |
160 |
VG1800210011 |
Cover |
001 |
2010105 |
||
|
161 |
161 |
VG1800210011/1 |
Cover |
001 |
2010105 |
||
|
162 |
162 |
VG1800210011/2 |
Cover |
001 |
2010105 |
||
|
163 |
163 |
190003802511 |
Bolt |
002 |
2010105 |
||
|
164 |
164 |
Q617B18 |
Plug |
001 |
2010105 |
||
|
165 |
165 |
VG9003080007 |
Gasket |
001 |
2010105 |
||
|
166 |
166 |
VG9003080007/1 |
Gasket |
001 |
2010105 |
||
|
167 |
167 |
VG9003080007/2 |
Gasket |
001 |
2010105 |
||
|
168 |
168 |
VG14010086 |
Gasket |
001 |
2010105 |
||
|
169 |
169 |
VG14010086/1 |
Gasket |
001 |
2010105 |
||
|
170 |
170 |
VG14010086/2 |
Gasket |
001 |
2010105 |
||
|
171 |
171 |
190003802321 |
Bolt |
004 |
2010105 |
||
|
172 |
172 |
190003931082 |
Spring washer |
004 |
2010105 |
||
|
173 |
173 |
VG1560010028 |
Tube assembly |
001 |
2010105 |
||
|
174 |
174 |
VG1560010028/1 |
Filling spool component (E103) |
001 |
2010105 |
||
|
175 |
175 |
VG1560010028/2 |
Filling spool component (E078) |
001 |
2010105 |
||
|
179 |
179 |
Q734B2650265 |
O-ring |
001 |
2010105 |
||
|
181 |
181 |
190003930261 |
Washer |
002 |
2010105 |
||
|
182 |
182 |
190003931102 |
Spring washer |
002 |
2010105 |
||
|
183 |
183 |
190003989301 |
Hose clamp |
001 |
2010105 |
||
|
184 |
184 |
VG12G00040038 |
Hose |
001 |
2010105 |
||
|
185 |
185 |
VG12G00040038/1 |
Hose |
001 |
2010105 |
||
|
186 |
186 |
VG12G00040038/2 |
Hose |
001 |
2010105 |
||
|
187 |
187 |
VG12G00040038/3 |
Hose |
001 |
2010105 |
||
|
189 |
189 |
VG2600010705 |
Dipstick tube components |
001 |
2010105 |
||
|
190 |
190 |
VG2600010705/1 |
Dipstick tube components |
001 |
2010105 |
||
|
191 |
191 |
VG2600010705/2 |
Dipstick tube components |
001 |
2010105 |
||
|
192 |
192 |
VG2600010705/3 |
Dipstick tube components |
001 |
2010105 |
||
|
193 |
193 |
VG1500010600 |
Dipstick tube components |
001 |
2010105 |
||
|
194 |
194 |
VG1500010600/1 |
Dipstick tube components |
001 |
2010105 |
||
|
195 |
195 |
VG1500010600/2 |
Dipstick tube components |
001 |
2010105 |
||
|
196 |
196 |
VG1540019099 |
Name plate |
001 |
2010105 |
||
|
197 |
197 |
VG1540019099/1 |
name plate |
001 |
2010105 |
||
|
198 |
198 |
VG2600010831 |
Anti-winding safety sign |
002 |
2010105 |
||
|
199 |
199 |
VG2600010831/1 |
Anti-winding safety sign (E130) |
001 |
2010105 |
||
|
200 |
200 |
VG2600010831/2 |
notice |
001 |
2010105 |
||
|
201 |
201 |
VG2600010833 |
Oil seal warning sign |
001 |
2010105 |
||
|
202 |
202 |
VG2600010833/1 |
Oil seal warning sign (E130) |
001 |
2010105 |
||
|
203 |
203 |
VG2600010833/2 |
notice |
001 |
2010105 |
||
|
204 |
204 |
VG2600010832 |
Safety sign for burns prevention |
001 |
2010105 |
||
|
205 |
205 |
VG2600010832/1 |
Safety sign for burns prevention (E130) |
001 |
2010105 |
||
|
206 |
206 |
VG2600010832/2 |
notice |
001 |
2010105 |
||
|
207 |
207 |
VG29115 |
Cover |
001 |
2010105 |
||
|
208 |
208 |
VG29115/1 |
Cover |
001 |
2010105 |
||
|
209 |
209 |
VG29115/2 |
Cover |
001 |
2010105 |
||
|
210 |
210 |
VG2600010447 |
Clip |
001 |
2010105 |
||
|
211 |
211 |
VG2600010447/1 |
Clip |
001 |
2010105 |
||
|
212 |
212 |
VG2600010447/2 |
Clip |
001 |
2010105 |
||
|
213 |
213 |
VG2600010446 |
Hose |
001 |
2010105 |
||
|
214 |
214 |
VG2600010446/1 |
Hose |
001 |
2010105 |
||
|
215 |
215 |
VG2600010446/2 |
Hose |
001 |
2010105 |
||
|
216 |
216 |
VG2600010791 |
Rivet |
004 |
2010105 |
||
|
217 |
217 |
VG2600010791/1 |
Rivet |
001 |
2010105 |
||
|
218 |
218 |
VG288730061 |
O-ring |
001 |
2010105 |
||
|
219 |
219 |
VG288730061/1 |
O-ring |
001 |
2010105 |
||
|
220 |
220 |
VG288730061/2 |
O-ring |
001 |
2010105 |
||
|
221 |
221 |
VG1557010012 |
Engine front suspension ring |
001 |
2010105 |
||
|
222 |
222 |
VG1557010012/1 |
Engine front suspension ring (E078) |
001 |
2010105 |
||
|
223 |
223 |
VG1557010012/2 |
Engine front suspension ring (E106) |
001 |
2010105 |
||
|
224 |
224 |
Q150B1230 |
Bolt |
003 |
2010105 |
||
|
225 |
225 |
Q218B1230 |
Screw |
001 |
2010105 |
||
|
226 |
226 |
Q40312 |
Spring washer |
004 |
2010105 |
||
|
227 |
227 |
Q40112 |
Washer |
004 |
2010105 |
||
|
228 |
228 |
VG1540010021/4 |
Bushing |
001 |
2010105 |
||
|
229 |
229 |
VG1540010021/5 |
Bushing |
001 |
2010105 |
||
|
230 |
230 |
VG1540010021/6 |
Bushing |
001 |
2010105 |
||
|
231 |
231 |
VG1540010022/4 |
Bushing |
001 |
2010105 |
||
|
232 |
232 |
VG1540010022/5 |
Bushing |
001 |
2010105 |
||
|
233 |
233 |
VG1540010022/6 |
Bushing |
001 |
2010105 |
||
|
234 |
234 |
VG2600011106/5 |
Hose |
001 |
2010105 |
||
|
235 |
235 |
VG29135/3 |
Cover |
001 |
2010105 |
||
|
236 |
236 |
VG29135/4 |
Cover |
001 |
2010105 |
||
|
237 |
237 |
VG1557010015B |
Oil separator |
001 |
2010105 |
||
|
238 |
238 |
VG1557010015B/1 |
Oil and gas separator assembly (E106) |
001 |
2010105 |
||
|
239 |
239 |
VG1557010015B/2 |
Oil and gas separator assembly (E078) |
001 |
2010105 |
||
|
240 |
240 |
Q150B0816 |
Bolt |
002 |
2010105 |
||
|
241 |
241 |
VG12G00040038/5 |
Hose |
001 |
2010105 |
||
|
242 |
242 |
VG1092060125 |
Bracket assembly |
001 |
2010105 |
||
|
243 |
243 |
VG1092060125/1 |
Bracket assembly (0045) |
001 |
2010105 |
||
|
244 |
244 |
VG1092060121 |
Bracket |
001 |
2010105 |
||
|
245 |
245 |
VG1092060122 |
Plate |
001 |
2010105 |
||
|
246 |
246 |
VG1092060123 |
Plate |
002 |
2010105 |
||
|
247 |
247 |
VG1092060124 |
Pin |
001 |
2010105 |
||
|
248 |
248 |
Q370C06 |
Nut |
001 |
2010105 |
||
|
249 |
249 |
VG1092060125/2 |
Bracket assembly (E078) |
001 |
2010105 |
||
|
250 |
250 |
VG1092060121 |
Bracket |
001 |
2010105 |
||
|
251 |
251 |
VG1092060122 |
Plate |
001 |
2010105 |
||
|
252 |
252 |
VG1092060123 |
Plate |
002 |
2010105 |
||
|
253 |
253 |
VG1092060124/2 |
Pin |
001 |
2010105 |
||
|
254 |
254 |
Q370C06 |
Nut |
001 |
2010105 |
||
|
255 |
255 |
VG1092060125/3 |
Bracket assembly (E106) |
001 |
2010105 |
||
|
256 |
256 |
VG1092060121 |
Bracket |
001 |
2010105 |
||
|
257 |
257 |
VG1092060122 |
Plate |
001 |
2010105 |
||
|
258 |
258 |
VG1092060123 |
Plate |
002 |
2010105 |
||
|
259 |
259 |
VG1092060124 |
Pin |
001 |
2010105 |
||
|
260 |
260 |
Q370C06 |
Nut |
001 |
2010105 |
||
|
261 |
261 |
VG1557010014/2 |
Oil cooler cover (E141) |
001 |
2010105 |
||
|
262 |
262 |
VG61000010134/3 |
Sealing ring (E122) |
001 |
2010105 |
||
|
263 |
263 |
VG407010046/3 |
Gasket |
001 |
2010105 |
||
|
264 |
264 |
VG2600010831/3 |
Anti-winding safety sign (E243) |
001 |
2010105 |
||
|
265 |
265 |
VG2600010833/1 |
Oil seal warning sign (E130) |
001 |
2010105 |
||
|
266 |
266 |
VG2600010832/3 |
Safety sign for burns prevention (E243) |
001 |
2010105 |
||
